linear DESIGN FEATURES LTMag-V19N4-02-LTC6655-JimWilliams service manual

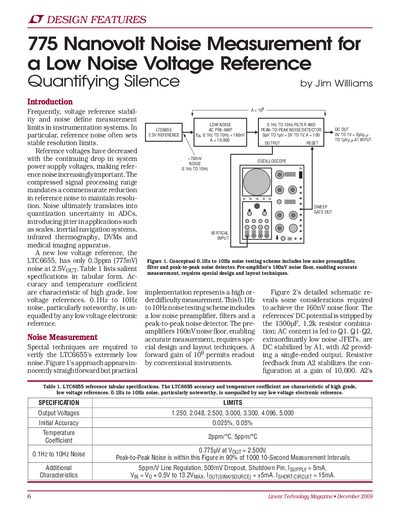

This document presents a design feature article from Linear Technology Magazine regarding the LTC6655, a low noise voltage reference. The text highlights that the device offers 0.3ppm (775nV) noise at 2.5V output, making it suitable for high-resolution instrumentation systems where reference stability defines measurement limits.
Read onlineLinear Technology LTC6655 specifications
| Noise (0.1Hz to 10Hz) | 625nV |
|---|---|
| Temperature Drift (Max) | 2ppm/°C |
| Initial Voltage Accuracy | +0.025% |
| Maximum Supply Voltage | 13.2V |
| Load Regulation | <10ppm/mA |
| Source/Sink Current | +5mA |
| Low Dropout Voltage | 500mV |
Source: LINEAR LTC6655: 0.25ppm Noise Precision Reference Data Sheet
All Linear Technology LTC6655 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the peak-to-peak noise of the LTC6655 at 2.5V output?
The device has only 775 nanovolts of noise at a 2.5 volt output.
From: linear DESIGN FEATURES LTMag-V19N4-02-LTC6655-JimWilliams service manual
What is the frequency range for the stated noise measurement?
The specified noise level applies to frequencies between 0.1Hz and 10Hz.
From: linear DESIGN FEATURES LTMag-V19N4-02-LTC6655-JimWilliams service manual
What is the noise performance of the LTC6655?
The device has only 625nV of noise from 0.1Hz to 10Hz.
From: LINEAR LTC6655: 0.25ppm Noise Precision Reference Data Sheet
What is the maximum temperature drift?
The LTC6655 has a maximum temperature drift of less than 2ppm/°C.
From: LINEAR LTC6655: 0.25ppm Noise Precision Reference Data Sheet
