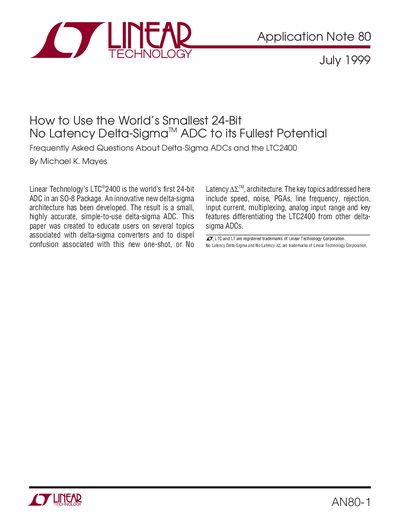

Linear Technology LTC2400 Application Note AN80-1
The document serves as a technical guide for the LTC2400, highlighting its status as the world's first 24-bit ADC in an SO-8 package. It details the innovative 'No Latency' delta-sigma architecture designed to provide high DC accuracy with minimal external filtering requirements.
Read onlineAll Linear Technology LTC2400 documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum conversion rate for the LTC2400?
The maximum conversion rate for this particular part is 15Hz (with 120Hz rejection).
Is a PGA required with the LTC2400?
No, a PGA is not required with the LTC2400 because it enables direct digitizing of low level signals over a wide input range.
What is the primary function of this application note?
It contains six circuits that extend the LTC2400's capabilities using low power differential-to-single-ended signal conditioning.
What input voltage range do these circuits support?
The circuits are designed to condition differential input signals as low as 5mV to as high as ±2.5V.
