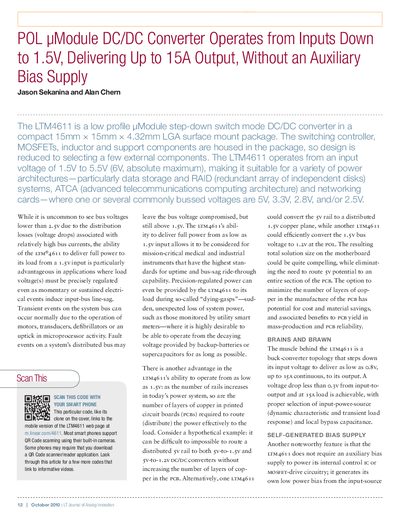

linear DESIGN FEATURES LTJournal-V20N3-02-df-LTM4611-Jason_Sekanina service manual
The LTM4611 is a uModule step-down switch mode DC/DC converter housed in a compact 15mm x 15mm x 4.32mm LGA surface mount package. It integrates the switching controller, MOSFETs, and inductor to reduce external component requirements. The device operates from an input voltage of 1.5V to 5.5V (6V absolute maximum) and delivers up to 15A continuous output current.
Read onlineLinear Technology LTM4611 specifications
| Input Voltage Range | 1.5V to 5.5V (6V absolute maximum) |
|---|---|
| Output Current | Up to 15A continuous |
| Package Dimensions | 15mm x 15mm x 4.32mm LGA |
| Output Voltage Range | As low as 0.8V |
| Switching Frequency (Default) | 500kHz |
Source: linear DESIGN FEATURES LTJournal-V20N3-02-df-LTM4611-Jason_Sekanina service manual
All Linear Technology LTM4611 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the LTM4611 require an auxiliary bias supply?
No, it generates its own low power bias from the input-source.
From: linear DESIGN FEATURES LTJournal-V20N3-02-df-LTM4611-Jason_Sekanina service manual
Can multiple LTM4611 modules be paralleled?
Yes, current sharing of four modules is supported for solutions up to 60A output.
From: linear DESIGN FEATURES LTJournal-V20N3-02-df-LTM4611-Jason_Sekanina service manual
What is the input voltage range for the LTM4611?
The regulator accepts an input voltage ranging from 1.5V to 5.5V.
What is the maximum output current of this device?
The LTM4611 can deliver a continuous output current of 15A.
