Analog Devices LTC6412 Variable Gain Amplifier Application Note

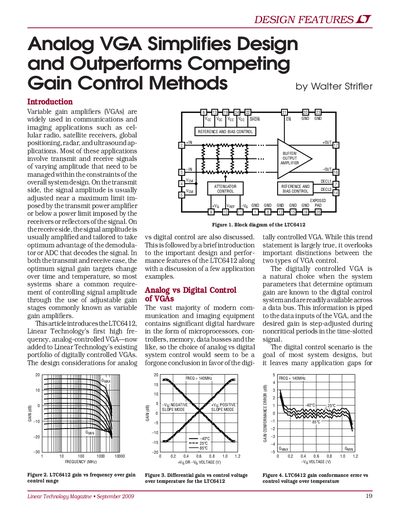

The document introduces the LTC6412, Linear Technology's first high-frequency, analog-controlled Variable Gain Amplifier (VGA). It highlights the device's use in communications and imaging applications such as cellular radio, satellite receivers, radar, and ultrasound. The text compares analog versus digital control methods for VGAs, noting that while digital is common, analog solutions are necessary when system parameters are unknown or RF signals cannot tolerate step disturbances.
Read onlineLinear Technology LTC6412 specifications
| Bandwidth (LTC6409) | 110 MHz |
|---|---|
| Input Noise Density (LTC6409) | 27 nV/VHz |
| Gain Range (LTC6412) | -14 dB to +17 dB |
| OIP3 at 240MHz (LTC6412) | 35 dBm |
| Noise Figure (LTC6412) | 10 dB |
Source: LINEAR 2PB_6409 Differential Amplifiers High Speed ADC Drivers
All Linear Technology LTC6412 documents by type
How to use the product for one specific task, with worked examples.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum gain range provided by the LTC6412?
The device provides a variable gain range from -14dB to +17dB.
From: Analog Devices LTC6412 Variable Gain Amplifier Application Note
What is the typical settling time for a gain step change?
The settling time is 400ns and remains roughly independent of the step size.
From: Analog Devices LTC6412 Variable Gain Amplifier Application Note
What is the input noise density of the LTC6409?
The LTC6409 has an input noise density of 27 nV/VHz.
From: LINEAR 2PB_6409 Differential Amplifiers High Speed ADC Drivers
What is the gain range for the LTC6412?
The LTC6412 offers a linear-in-dB gain range from -14 dB to +17 dB.
From: LINEAR 2PB_6409 Differential Amplifiers High Speed ADC Drivers
