Analog Devices LTC4354 Negative Voltage Diode-OR Controller Datasheet

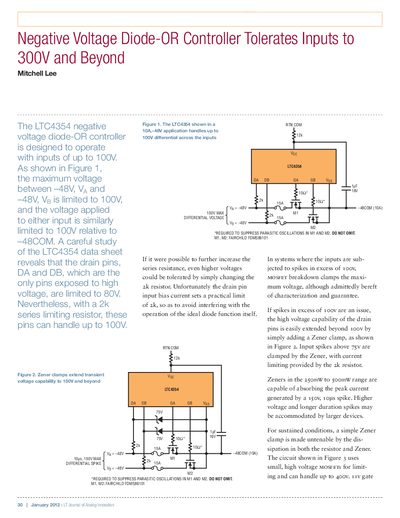

The document introduces the LTC4354 negative voltage diode-OR controller, highlighting its design for operation with inputs up to 100V. It explains that while drain pins are limited to 80V, they can handle higher voltages (up to 100V) when used with a series limiting resistor.
Read onlineAll Linear Technology LTC4354 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
How can the drain pin voltage limit be extended?
The drain pin voltage limit can be extended beyond 100V by adding a Zener clamp and using a series limiting resistor.
From: Analog Devices LTC4354 Negative Voltage Diode-OR Controller Datasheet
What component limits the current for the Zener clamp?
A series resistor, typically 2k, provides current limiting for the Zener clamp.
From: Analog Devices LTC4354 Negative Voltage Diode-OR Controller Datasheet
How do ideal diodes protect against wiring errors?
They provide protection similar to discrete diode solutions, making wiring errors transparent to the load or preventing damage through reverse input protection networks.
From: Linear Technology LTC4355/LTC4354 Ideal Diode Design Note 444
What happens if RTNA and NEGA are swapped?
The associated ideal diodes become reverse biased, making the wiring error transparent to the load while the other battery provides power.
From: Linear Technology LTC4355/LTC4354 Ideal Diode Design Note 444
