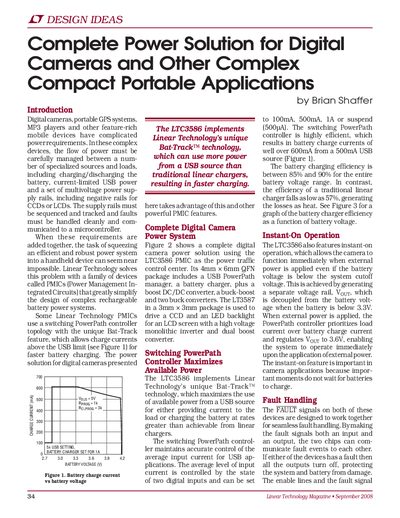

linear DESIGN FEATURES LTMag-V18N03-12-LT3587-BrianShaffer service manual
The text presents 'Design Ideas' for digital cameras and other complex compact portable applications, focusing on complete power solutions. It details how Linear Technology's PMICs (Power Management Integrated Circuits) simplify the management of multiple power sources, such as batteries and USB inputs, in mobile devices.
Specifically, the article describes a solution using the LTC3586 for battery charging with Bat-Track technology and the LT3587 for driving CCDs and LED backlights. It also briefly mentions the LTC3851 regulator.
All Linear Technology LT3587 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the dimming ratio of the LT3587 when using a 100Hz PWM signal?
The device allows for a dimming ratio of 30:1 under these conditions.
From: linear DESIGN FEATURES LTMag-V18N03-12-LT3587-BrianShaffer service manual
What is the input voltage range for the LTC3851 regulator?
The device accepts an input voltage ranging from 4V to 38V.
From: linear DESIGN FEATURES LTMag-V18N03-12-LT3587-BrianShaffer service manual
What is the maximum input voltage range for the LT3587?
The device runs from inputs ranging from 2.5V to 6V.
From: LINEAR LTC3587 Manual
What is the maximum output voltage for the positive channels?
The positive channels provide an output range of up to 32V.
From: LINEAR LTC3587 Manual
