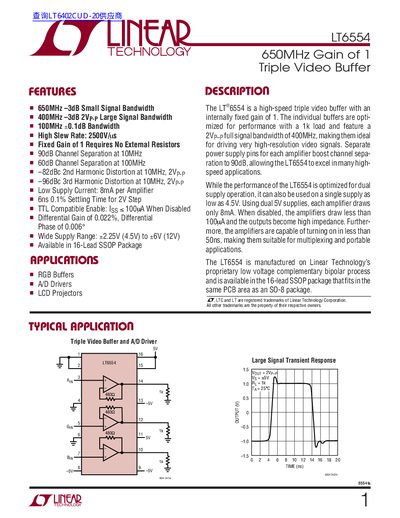

Linear Technology LT6554 Triple Video Buffer Datasheet
The LT6554 is a high-speed triple video buffer featuring an internally fixed gain of 1. It includes three independent amplifiers optimized for performance with a 1k load and features a 2Vp-p full signal bandwidth of 400MHz, making it ideal for driving very high-resolution video signals.
Read onlineLinear Technology LT6554 specifications
| -3dB Small Signal Bandwidth | 650MHz |
|---|---|
| -3dB Large Signal Bandwidth (2Vp.p) | 400MHz |
| +0.1dB Bandwidth | 100MHz |
| Slew Rate | 2500V/us |
| Fixed Gain | 1 |
| Channel Separation (10MHz) | 90dB |
| Supply Current (Per Amplifier, RL=1k) | 8mA |
| Settling Time (0.1%, 2V Step) | 6ns |
| Operating Temperature Range | -40°C to 85°C |
Source: Linear Technology LT6554 Triple Video Buffer Datasheet
All Linear Technology LT6554 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the fixed gain of the LT6554?
The LT6554 has an internally fixed gain of 1, which requires no external resistors.
From: Linear Technology LT6554 Triple Video Buffer Datasheet
What are the typical applications for this device?
Typical applications include RGB buffers, A/D drivers, and LCD projectors.
From: Linear Technology LT6554 Triple Video Buffer Datasheet
What is the input noise density of the LTC6409?
The LTC6409 has an input noise density of 27 nV/VHz.
From: LINEAR 2PB_6409 Differential Amplifiers High Speed ADC Drivers
What is the gain range for the LTC6412?
The LTC6412 offers a linear-in-dB gain range from -14 dB to +17 dB.
From: LINEAR 2PB_6409 Differential Amplifiers High Speed ADC Drivers
