Key facts
- Brand
- Linear Technology
- Model
- LTC3610
- Category
- DC/DC Converter
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-05
Start here

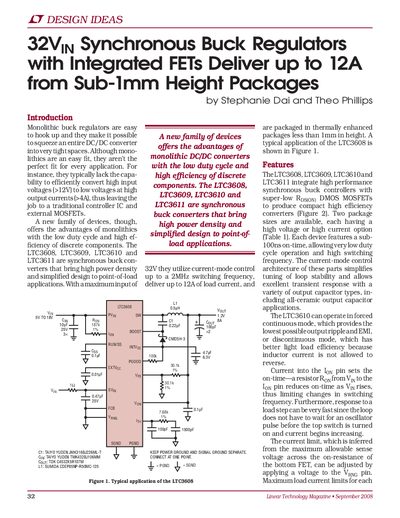

LINEAR LTC360X Manual
The document introduces a new family of monolithic buck regulators (LTC3608 through LTC3611) that combine the advantages of discrete components with the space-saving benefits of traditional monolithics. These devices are designed to efficiently convert high input voltages up to 32V into low output voltages at currents up to 12A.
Read onlineLinear Technology LTC3610 specifications
| Maximum Load Current (ILoad Max) | 12A |
|---|---|
| Switching Frequency | up to 2MHz |
| Package Height | <1mm |
Source: LINEAR LTC360X Manual
All Linear Technology LTC3610 documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What are the model numbers included in this family?
The family includes the LTC3608, LTC3609, LTC3610 and LTC3611.
From: LINEAR LTC360X Manual
What is the maximum input voltage for the LTC3610?
The LTC3610 has a maximum input voltage of 24V.
From: LINEAR LTC360X Manual
What is the maximum input voltage for the LTC3610?
The device accepts an input supply ranging from 4V to 28V.
From: LTC3610 Monolithic Synchronous Step-Down Regulator Design Note 457
What is the maximum height of the LTC3610 package?
The regulator is available in low profile packages with a maximum height of 0.9mm.
From: LTC3610 Monolithic Synchronous Step-Down Regulator Design Note 457
