Key facts
- Brand
- Linear Technology
- Model
- LT3581
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-05
Start here

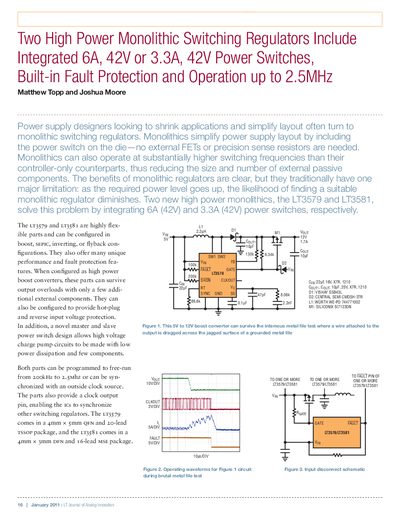

Linear Technology LT3579/LT3581 High Power Monolithic Switching Regulators Datasheet
The document introduces two new high-power monolithic switching regulators, the LT3579 and LT3581, designed to simplify power supply layouts by integrating the power switch on the die. These parts offer integrated fault protection and can operate at frequencies up to 2.5MHz.
Read onlineLinear Technology LT3581 specifications
| Integrated Power Switch Current (LT3579) | 6A |
|---|---|
| Integrated Power Switch Voltage | 42V |
| Integrated Power Switch Current (LT3581) | 3.3A |
| Maximum Operating Frequency | 2.5MHz |
Source: Linear Technology LT3579/LT3581 High Power Monolithic Switching Regulators Datasheet
All Linear Technology LT3581 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current for the LT3579?
The LT3579 integrates a power switch that can handle up to 6A.
From: Linear Technology LT3579/LT3581 High Power Monolithic Switching Regulators Datasheet
What is the maximum output current for the LT3581?
The LT3581 integrates a power switch that can handle up to 3.3A.
From: Linear Technology LT3579/LT3581 High Power Monolithic Switching Regulators Datasheet
What is the maximum switching frequency of the LT3581?
The device can operate at a switching frequency up to 2.5 MHz.
From: Linear Technology LT3581 Boost/Inverting DC/DC Converter Datasheet
What input voltage range does the LT3581 support?
It supports an input voltage from 2.5 V to 22 V.
From: Linear Technology LT3581 Boost/Inverting DC/DC Converter Datasheet
