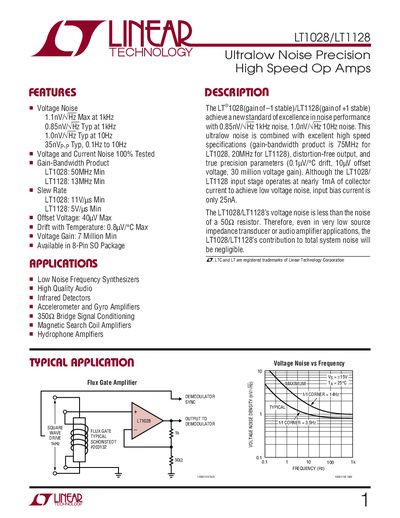

Linear Technology LT1028/LT1128 Ultralow Noise Precision Op Amps Datasheet
The LT1028 and LT1128 are ultralow‑noise, precision op‑amps offering 0.85 nV/√Hz noise at 1 kHz (LT1028) and 1.0 nV/√Hz at 10 Hz. They combine high speed (gain‑bandwidth up to 50 MHz for LT1028, 13 MHz for LT1128) with low offset (40 µV max) and low input bias current (25 nA).
The document provides absolute maximum ratings, electrical characteristics, typical performance graphs, package dimensions, and recommended applications such as low‑noise synthesizers, audio, infrared detectors, and hydrophone amplifiers.
Linear Technology LT1128 specifications
| Voltage Noise (1 kHz) | 0.85 nV/√Hz typ |
|---|---|
| Voltage Noise (10 Hz) | 1.0 nV/√Hz typ |
| Gain‑Bandwidth Product | LT1028: 50 MHz min, LT1128: 13 MHz min |
| Slew Rate | LT1028: 11 V/µs min, LT1128: 5 V/µs min |
| Offset Voltage | 40 µV max |
| Input Bias Current | 25 nA typ |
Source: Linear Technology LT1028/LT1128 Ultralow Noise Precision Op Amps Datasheet
All Linear Technology LT1128 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical voltage noise of the LT1028 at 1 kHz?
The LT1028 has a typical voltage noise of 0.85 nV/√Hz at 1 kHz.
From: Linear Technology LT1028/LT1128 Ultralow Noise Precision Op Amps Datasheet
What is the voltage noise of the LT1028 at 1 kHz?
The LT1028 has a typical voltage noise of 0.85 nV/√Hz at 1 kHz.
What is the gain‑bandwidth product of the LT1128?
The LT1128 provides a minimum gain‑bandwidth product of 13 MHz.
