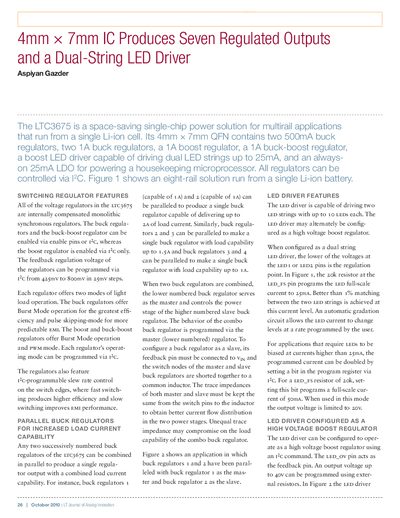

Linear Technology LTC3675 Datasheet
The LTC3675 is a space-saving single-chip power solution designed for multirail applications running from a single Li-ion cell. It integrates two 500mA buck regulators, two 1A buck regulators, a 1A boost regulator, a 1A buck-boost regulator, and an always-on 25mA LDO. All regulators can be controlled via I2C.
Read onlineLinear Technology LTC3675 specifications
| Package Size | 4mm x 7mm QFN |
|---|---|
| Input Source | Single Li-ion cell |
| Buck Regulator Count | Two 500mA and two 1A |
| Boost Regulator Current | 1A |
| LED Driver Capability | Dual strings up to 25mA |
| LDO Current | Always-on 25mA |
All Linear Technology LTC3675 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the dimensions and package type of the LTC3675?
The device is a single-chip power solution housed in a 4mm x 7mm QFN package.
What is the maximum output voltage when the LED driver is configured as a high voltage boost regulator?
An output voltage up to 40V can be programmed using external resistors in this configuration.
What is the LTC3675?
The LTC3675 is a highly integrated general-purpose power management solution for high power single cell Lithium-ion/Polymer systems.
From: LINEAR 2PB_3675 Configurable 7-Channel High Power PMIC
How many independent rails does the device feature?
The device features seven independent rails plus an LED driver.
From: LINEAR 2PB_3675 Configurable 7-Channel High Power PMIC
