LINEAR dn426f handbook

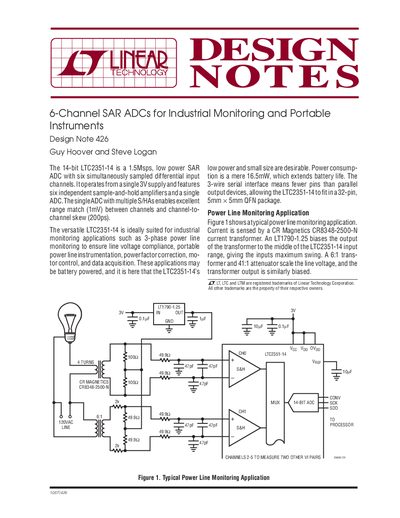

This document is Design Note 426 from Linear Technology Corporation, authored by Guy Hoover and Steve Logan. It introduces the LTC2351-14, a 14-bit, 1.5Msps low power SAR ADC featuring six simultaneously sampled differential input channels.
The note details the device's suitability for industrial monitoring applications such as 3-phase power line monitoring, portable instrumentation, and data acquisition. It highlights key specifications including operation from a single 3V supply with a total power consumption of 16.5mW, and includes a typical application circuit diagram.
