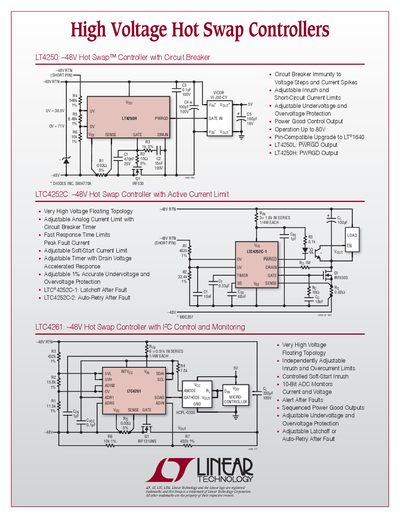

LINEAR 2PB_HVhotswap High Voltage Hot Swap Controllers
This document provides technical specifications and descriptions for a series of High Voltage Hot Swap Controllers manufactured by Linear Technology. The devices are designed to manage power delivery in systems requiring protection against voltage steps and current spikes, operating up to 80V or higher depending on the specific part.
The datasheet covers several models, including the LT4250 (negative hot swap with circuit breaker), LTC4251B/LTC4252C (active current limiting), LT4261 (I2C interface monitoring), and positive voltage variants like the LT4256 and LTC4260. Key features highlighted include adjustable inrush limits, foldback current limiting, undervoltage/overvoltage protection, and various fault handling modes such as latchoff or auto-retry.
Linear Technology LT4250 specifications
| Operating Voltage Range | -48V to 80V (Negative) / +48V (Positive) |
|---|---|
| Package Type (LT4250) | SO-8 |
| Interface (LTC4260/LT4261) | I2C/SMBus |
Source: LINEAR 2PB_HVhotswap High Voltage Hot Swap Controllers
All Linear Technology LT4250 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage limit for these controllers?
The negative hot swap controllers operate up to 80V.
From: LINEAR 2PB_HVhotswap High Voltage Hot Swap Controllers
Which models feature an I2C interface?
The LT4261 and LTC4260 models include an I2C/SMBus interface.
From: LINEAR 2PB_HVhotswap High Voltage Hot Swap Controllers
What happens when the current limit is active for more than 500 µs?
If the current limit remains active for over 500 µs, the electronic circuit breaker trips, pulling the GATE pin low and turning off the external MOSFET.
