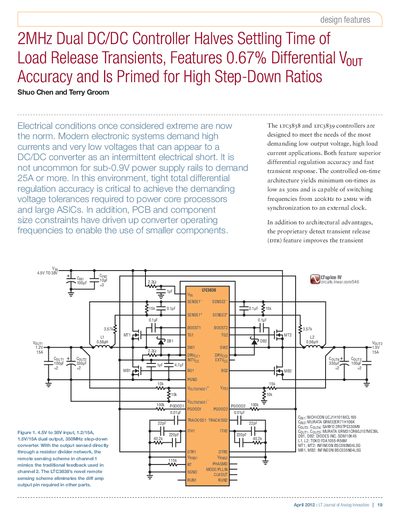

Linear Technology LTC3838 Dual DC/DC Controller Datasheet
The LTC3838 is a dual-channel DC/DC controller designed for demanding low output voltage and high load current applications. It utilizes a controlled on-time architecture that supports switching frequencies from 200kHz to 2MHz, enabling the use of smaller components while maintaining efficiency at heavy loads.
A key feature of this device is its proprietary Detect Transient Release (DTR) capability, which improves transient performance in low output voltage applications by detecting load releases and reducing overshoot. The controller supports differential regulation accuracy of +0.67% and can be configured for dual or single-output applications with per-channel currents up to 25A.
Linear Technology LTC3838 specifications
| Input Voltage Range | 4.5V to 38V (40V abs max) |
|---|---|
| Output Voltage Range | 0.6V to 5.5V (6V abs max) |
| Per-Channel Current | Up to 25A |
| Switching Frequency Range | 200kHz to 2MHz |
| Differential Regulation Accuracy | +/- 0.67% |
| Minimum On-Time | 30ns |
Source: Linear Technology LTC3838 Dual DC/DC Controller Datasheet
All Linear Technology LTC3838 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum switching frequency of the LTC3838?
The controller supports switching frequencies from 200kHz to 2MHz.
From: Linear Technology LTC3838 Dual DC/DC Controller Datasheet
Can the LTC3838 be used for single-output applications?
Yes, its dual channels can be configured for either dual- or single-output applications.
From: Linear Technology LTC3838 Dual DC/DC Controller Datasheet
What is the LTC3838?
The LTC3838 is a dual output, dual phase buck controller.
From: Linear Technology Design Note 1028 LTC3838 Dual Controller Application Note
What input voltage range does the LTC3838 accept?
It accepts a wide input range from 4.5V to 38V.
From: Linear Technology Design Note 1028 LTC3838 Dual Controller Application Note
