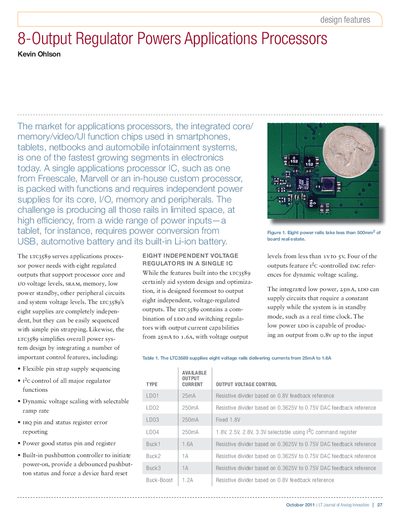

Analog Devices LTC3589 8-Output Regulator Datasheet
The LTC3589 is a high-efficiency power management solution designed to provide eight independent regulated outputs in a single IC. It supports various output configurations including LDOs and switching buck/buck-boost converters with current capabilities ranging from 25mA to 1.6A. The device integrates control features such as flexible pin-strapped supply sequencing, dynamic voltage scaling (DVS), and power good status reporting.
Read onlineAll Linear Technology LTC3589 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input supply voltage range for the LTC3589?
The device is designed to run from an input supply range of 2.7V to 5.5V.
What is the maximum output current capability for the LDO regulators?
The three additional LDOs are each capable of delivering 250mA.
What is the switching frequency of the LTC3589?
The device offers selectable switching frequencies of 2.25MHz or 1.12MHz.
From: LINEAR 2PB_3589 A PMIC for Modern Application Processors
What is the standby current of the LTC3589?
The device has an 8uA standby current.
From: LINEAR 2PB_3589 A PMIC for Modern Application Processors
