LINEAR LTC3756 Manual

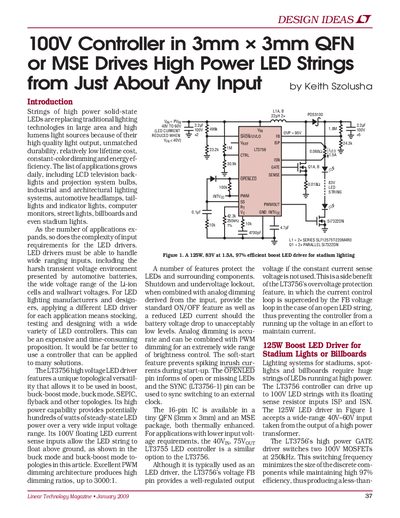

This document presents design applications for the LT3756 high voltage LED controller. It details how the device can be configured as a 125W boost driver for stadium lighting or billboards, handling wide input voltage ranges up to 60V and driving floating LED strings up to 100V.
Read onlineAll Linear Technology LT3756 documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum steady-state power output of the LT3756?
The controller can provide potentially hundreds of watts of steady-state LED power.
From: LINEAR LTC3756 Manual
What is the maximum dimming ratio achievable with the LT3756?
Excellent PWM dimming architecture produces high dimming ratios, up to 3000:1.
From: LINEAR LTC3756 Manual
What is the maximum input voltage range for the LT3756 boost mode LED driver shown in Figure 1?
The driver operates with a 40V to 60V input.
From: Design Note 461: LT3756 High Voltage LED Driver Application
What is the maximum switching frequency used by the high power gate driver?
The gate driver switches at 250kHz.
From: Design Note 461: LT3756 High Voltage LED Driver Application
