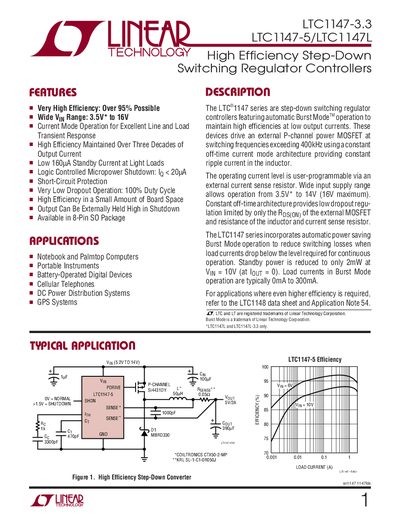

LINEAR TECHNOLOGY LTC1147-3.3 LTC1147-5/LTC1147L Manual
This manual describes the LTC1147‑3.3, LTC1147‑5 and LTC1147L step‑down switching regulator controllers. It includes features, absolute maximum ratings, electrical characteristics, typical performance graphs, pin descriptions, and detailed operation principles such as burst and continuous modes.
Application information covers component selection, inductor and capacitor sizing, MOSFET choice, and typical circuit examples. Package options and mechanical dimensions are also provided for both PDIP and plastic small‑outline packages.
Linear Technology LTC1147 specifications
| Maximum Efficiency | Up to 95% |
|---|---|
| Output Current Capability | In excess of 10A |
| Low Current Efficiency Threshold | As low as 10mA |
Source: Linear Technology AN54 Power Conversion Application Note
