Key facts
- Brand
- Linear Technology
- Model
- LT3501
- Category
- DC/DC Converters
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-05
Start here
LINEAR dn403f handbook
Datasheet 2 pages · 95 KB · EN

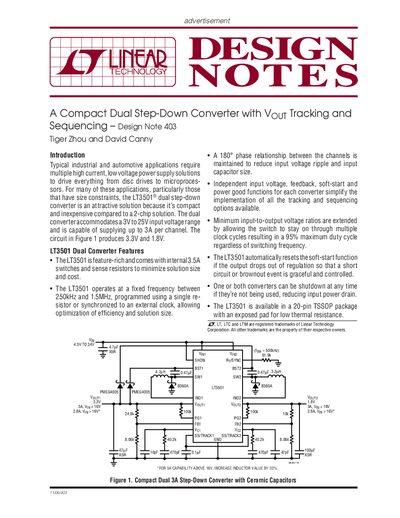

This document is a design note for the Linear Technology LT3501, a compact dual step-down converter. It highlights that the device accommodates a 3V to 25V input voltage range and can supply up to 3A per channel, making it suitable for industrial and automotive applications with size constraints.
Read onlineLinear Technology LT3501 specifications
| Input voltage range | 3.1 V to 25 V |
|---|---|
| Output current capability per channel | 3 A |
| Switching frequency range | 250 kHz to 1.5 MHz |
| Package type | 20‑Lead TSSOP with exposed leadframe |
| Shutdown current | <10 pA |
| Maximum duty cycle | 95 % |
All Linear Technology LT3501 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range for the LT3501?
The dual converter accommodates an input voltage range from 3V to 25V.
From: LINEAR dn403f handbook
How much current can each channel supply?
The device is capable of supplying up to 3A per channel.
From: LINEAR dn403f handbook
What is the input voltage range for the LT3501?
The LT3501 operates with an input voltage from 3.1 V up to 25 V.
How much output current can each channel provide?
Each of the two regulators can deliver up to 3 A of output current.
