Key facts
- Brand
- Linear Technology
- Model
- LTC1967
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-05
Start here

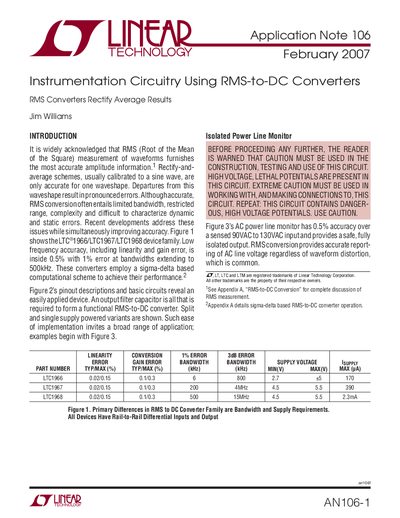

LINEAR AN106-1 handbook
Application Note 20 pages · 346 KB · EN
The document introduces the LTC1966/LTC1967/LTC1968 device family, which features low-frequency accuracy within 0.5% and bandwidths extending to 500kHz or higher depending on the specific part. These converters utilize a sigma-delta based computational scheme to achieve high precision in measuring RMS amplitude of waveforms.
Read onlineLinear Technology LTC1967 specifications
| Linearity Error (Typical) | 0.02% |
|---|---|
| Gain Error (Typical) | 0.1% |
| Supply Voltage (Min) | 4.5V |
Source: LINEAR AN106-1 handbook
All Linear Technology LTC1967 documents by type
Application Note 1
How to use the product for one specific task, with worked examples.
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the accuracy of the RMS converters at low frequencies?
Low frequency accuracy, including linearity and gain error, is inside 0.5%.
From: LINEAR AN106-1 handbook
What is the accuracy of the LTC1966/LTC1967/LTC1968 device family at bandwidths up to 500kHz?
The low frequency accuracy, including linearity and gain error, is inside 0.5% with a 1% error.
From: LINEAR AN106-1 handbook
