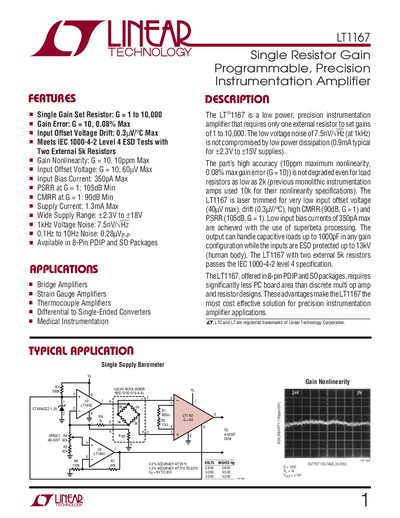

Linear Technology LT1167 Datasheet
The LT1167 is a low‑power, precision instrumentation amplifier that requires only a single external resistor to set gains from 1 to 10 000. It offers very low voltage noise (7.5 nV/√Hz at 1 kHz) and low power dissipation (≈0.9 mA typical at +2.3 V to +15 V). The device is laser‑trimmed for low input offset voltage, low drift, high CMRR and PSRR, and can drive capacitive loads up to 1000 pF.
Key specifications include a wide supply range of +2.3 V to +18 V, gain error as low as 0.008 % at G=1, input offset voltage of 60 µV max at G=10, supply current of 1.3 mA max, and operating temperature from –40 °C to 85 °C. The part is offered in 8‑pin PDIP and SO packages and is suitable for bridge amplifiers, strain‑gauge amplifiers, thermocouple amplifiers, and other precision instrumentation applications.
Linear Technology LT1167 specifications
| Gain Range | 1 to 10 000 (single external resistor) |
|---|---|
| Gain Error (G=1) | 0.008 % max |
| Gain Error (G=10) | 0.08 % max |
| Supply Current | 1.3 mA max |
| Input Offset Voltage (G=10) | 60 µV max |
| Input Bias Current | 350 pA max |
| Power Supply Rejection Ratio (G=1) | 105 dB min |
| Common‑Mode Rejection Ratio (G=1) | 90 dB min |
| Operating Temperature Range | -40 °C to 85 °C |
| Package | 8‑Lead Plastic Small Outline (Narrow 0.150) |
All Linear Technology LT1167 documents by type
Instruction set, parameters and examples for configuring or programming the device.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the LT1167?
The LT1167 operates from +2.3 V up to +18 V.
What is the typical supply current of the LT1167?
The device draws up to 1.3 mA of supply current.
