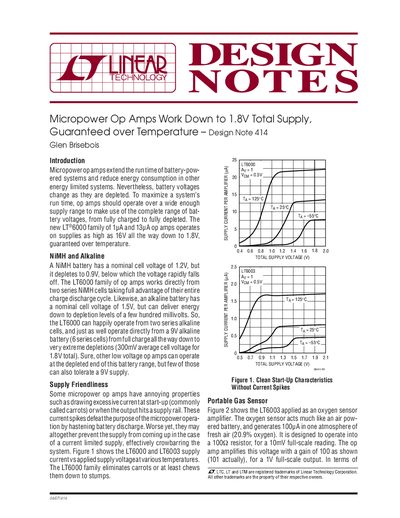

Linear Technology LT6000 Family Design Note DN414F
Datasheet 2 pages · 72 KB · EN
This document is a design note (DN414F) from Linear Technology Corporation regarding the LT6000 and LT6003 families of micropower operational amplifiers. These devices are designed to operate over a wide supply range, specifically from 1.8V up to 16V, ensuring functionality across the entire charge cycle of NiMH and alkaline batteries.
Read onlineLinear Technology LT6003 specifications
| Supply Voltage Range | 1.6 V to 16 V |
|---|---|
| Input Offset Voltage | 500 µV max |
| Input Bias Current | 90 pA max |
| CMRR | 100 dB |
| PSRR | 95 dB |
| Gain Bandwidth Product | 2 kHz |
| Output Swing Low (no load) | 15 mV |
| Supply Current per Amplifier (1.8 V) | 0.85 µA |
| Operating Temperature Range (H‑grade) | ‑40 °C to 125 °C |
All Linear Technology LT6003 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum total supply voltage for the LT6000 family of op amps?
The LT6000 family operates on supplies as high as 16V all the way down to 1.8V, guaranteed over temperature.
What is the total supply current for the oxygen sensor monitoring circuit shown in Figure 2?
The total supply current for that specific circuit is 950nA.
What is the supply voltage range for the LT6003?
The LT6003 operates from 1.6 V up to 16 V.
What is the typical input offset voltage of the LT6003/LT6004/LT6005?
The input offset voltage is specified as 500 µV maximum.
