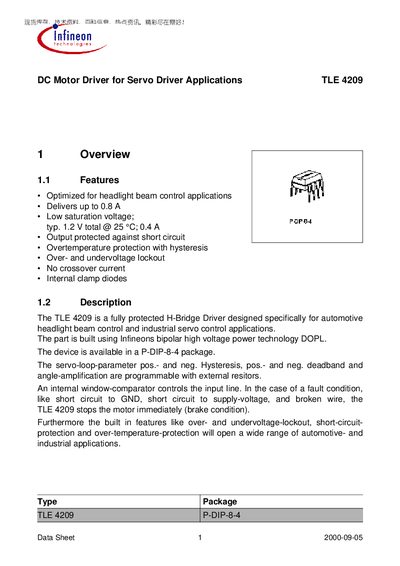

This data sheet introduces the features of TLE4209 DC motor driver.
The TLE4209 is a fully protected H‑bridge driver designed for automotive headlight beam control and industrial servo control. It is supplied in a P‑DIP‑8‑4 plastic dual‑in‑line package and offers programmable hysteresis, dead‑band and angle‑amplification via external resistors.
Key features include short‑circuit protection, over‑temperature protection, over‑ and undervoltage lockout, no crossover current, and internal clamp diodes. Electrical specifications cover a supply voltage range of 8‑18 V, output current up to 0.8 A, typical saturation voltage of 1.2 V at 25 °C, and thermal shutdown at 150 °C.
| Supply voltage range (Vg) | 8 V – 18 V |
|---|---|
| Maximum output current | 0.8 A |
| Typical saturation voltage (25 °C) | 1.2 V |
| Over‑voltage lockout ON voltage (Vovon) | 17.5 V |
| Thermal shutdown junction temperature | 150 °C |
| Package type | P‑DIP‑8‑4 |
The driver can deliver up to 0.8 A of output current.
It is supplied in a P‑DIP‑8‑4 plastic dual‑in‑line package.
The device includes short‑circuit protection, over‑temperature protection with hysteresis, and over‑ and undervoltage lockout.
The recommended supply voltage (Vg) is between 8 V and 18 V.
