The FDMS7660AS N-Channel PowerTrench® SyncFETTM is a low rDS(on) and high efficiency MOSFET suitable for DC/DC converters, notebook Vcore/GPU low side switches, networking point of load low side switches and telecom secondary side rectification.

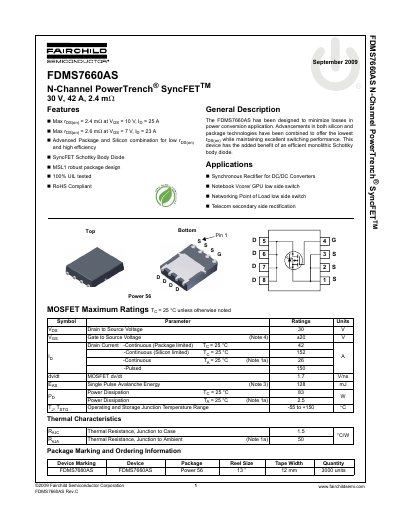

The document describes the Fairchild Semiconductor FDMS7660AS, an N-Channel PowerTrench SyncFET designed to minimize losses in power conversion applications. It features a maximum on-resistance of 2.4 mΩ at VGS = 10V and includes an efficient monolithic Schottky body diode for synchronous rectification.
| Drain to Source Voltage (VDS) | 30 V |
|---|---|
| Continuous Drain Current (Package limited) | 42 A |
| Max rDS(on) at VGS = 10V | 2.4 mΩ |
| Operating Junction Temperature Range | -55 to +150 °C |
| Power Dissipation (TC = 25°C) | 83 W |
It is suitable for synchronous rectifiers in DC/DC converters, notebook Vcore/GPU low side switches, networking point of load low side switches, and telecom secondary side rectification.
Yes, the document states that the device is RoHS Compliant.
