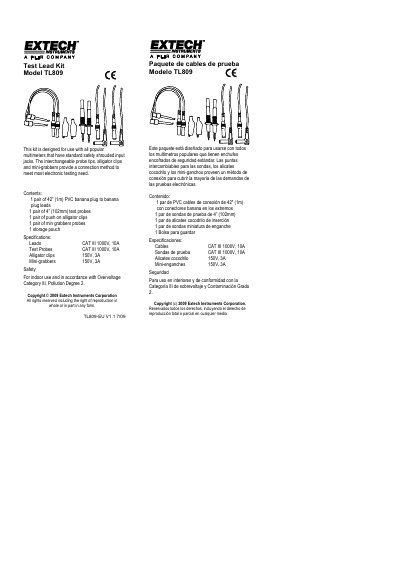

Extech TL809 Test Lead Kit Product Leaflet

This is the product manual of Extech TL809 test lead kit, including lead specifications and safety information.

Brand: EXTECH
Category: Other Electronics
Document type: Product Leaflet
Language: English
Pages: 1
File format: PDF
File size: 141 KB
Published: 01 August, 2012
Updated: 30 September, 2023
Model: TL809
MD5 checksum: 14D55645126D8D6EBD3D0503841615FB
PDF: Extech TL809 Test Lead Kit Product Leaflet PDF

About this manual

The Extech TL809 Test Lead Kit is designed for use with popular multimeters featuring standard safety shrouded input jacks. The kit provides various interchangeable connection methods to meet most electronic testing needs.

What's inside

Contents
Specifications
Safety

Specifications

Leads Category	CAT III 1000V
Leads Current Rating	10A
Test Probes Category	CAT III 1000V
Alligator Clips Voltage	150V
Alligator Clips Current	3A
Mini-grabbers Voltage	150V
Mini-grabbers Current	3A

Frequently asked questions

What is the Extech TL809 Test Lead Kit designed for?

This kit is designed for use with all popular multimeters that have standard safety shrouded input jacks.

What are the voltage and current ratings for the test probes?

The test probes are rated for CAT III 1000V and 10A.

What is the length of the PVC banana plug leads?

The kit includes one pair of 42

What are the voltage and current ratings for the alligator clips?

The alligator clips are rated for 150V and 3A.
