EXTECH 380260................Handheld Megohmmeter 380260-NIST ......380260 with Calibration Traceable to NIST TL805..................Double Injected Test Lead User's Guide

The Extech 380260 digital insulation resistance tester has a large backlit dual display that measures 250V, 500V, and 1000V insulation resistance with a 2000MΩ measurement range.

Brand: EXTECH
Category: Other Electronics
Document type: Product Leaflet
Language: English
Pages: 1
File format: PDF
File size: 205 KB
Published: 01 August, 2012
Updated: 01 October, 2023
MD5 checksum: A6D62A66039E177E9B8B4909E0C70867

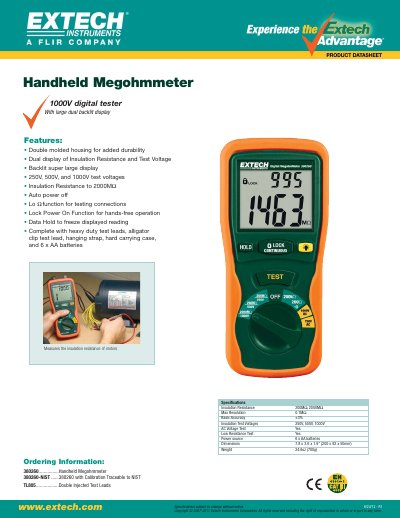

PDF: EXTECH 380260................Handheld Megohmmeter 380260-NIST ......380260 with Calibration Traceable to NIST TL805..................Double Injected Test Lead User's Guide PDF

About this manual

The EXTECH 380260 is a handheld megohmmeter designed to measure the insulation resistance of motors. It features a large dual backlit display showing both insulation resistance and test voltage, with test voltages of 250V, 500V, and 1000V. The device includes an auto power-off function, a low resistance test mode, and a lock power-on function for hands-free operation.

What's inside

Features
Specifications
Ordering Information
Display
Test Voltages
Accessories

Specifications

Insulation Resistance	200M2 to 2000M2
Max Resolution	0.1MΩ
Basic Accuracy	+3%
Insulation Test Voltages	250V, 500V, 1000V
Power source	6 x AA batteries
Dimensions	7.8 x 3.6 x 1.9” (200 x 92 x 50mm)
Weight	24.602 (700g)

Frequently asked questions

What is the maximum insulation resistance this megohmmeter can measure?

The device measures insulation resistance up to 2000MΩ.

What test voltages are available for this handheld megohmmeter?

The instrument offers 250V, 500V, and 1000V test voltages.

What is the physical weight of the EXTECH 380260?

The unit weighs 24.6 oz (700g).
