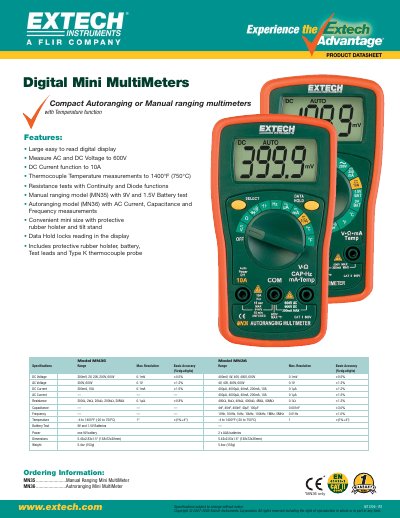

This document introduces the Compact Autoranging or Manual ranging multimeters with Temperature function from Extech Instruments Corporation in 2007-2008. The meter features a large easy-to-read digital display, measures AC and DC voltage up to 600V, DC current up to 10A, thermocouple temperature measurements up to 1400°F (750°C), resistance tests with continuity and diode functions. It comes in both manual ranging model (MN35) with battery test and autoranging model (MN36) with AC current, capacitance, and frequency measurements. The meter has a convenient mini size with a protective rubber holster and tilt stand. It also includes data hold function. The package includes a protective rubber holster, battery, test leads, and a Type K thermocouple probe.
This document provides the specifications and features for the Extech MN35 and MN36 digital mini multimeters. The MN35 is a manual ranging model, while the MN36 is an autoranging model that supports additional functions such as AC current, capacitance, and frequency measurements. Both models feature a large digital display, data hold, and a protective rubber holster.
| DC Voltage Range | 200mV, 2V, 20V, 200V, 600V |
|---|---|
| AC Voltage Range | 200V, 600V |
| DC Current Range | 200mA, 10A |
| AC Current Range | 400μA, 4000μA, 40mA, 200mA, 10A |
| Resistance Range | 200Ω, 2kΩ, 20kΩ, 200kΩ, 20MΩ |
| Capacitance Range | 4nF, 40nF, 400nF, 40μF, 100μF |
| Frequency Range | 10Hz, 100Hz, 1kHz, 10kHz, 100kHz, 1MHz, 5MHz |
| Temperature Range | -4 to 1400°F (-20 to 750°C) |
| Dimensions | 5.43x2.83x1.5" (138x72x38mm) |
| Weight | 5.4oz (153g) |
The MN35 is a manual ranging model, while the MN36 is an autoranging model that supports AC Current, Capacitance, and Frequency measurements.
The multimeters can measure AC and DC Voltage to 600V.
The temperature measurement range is -4 to 1400°F (-20 to 750°C).
