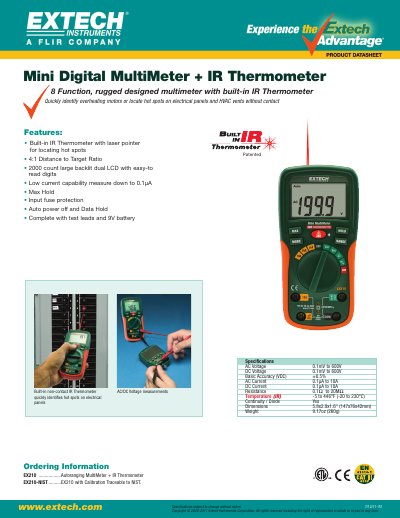

This document describes the specifications and features of Extech Instruments Corporation's products, including a built-in non-contact infrared thermometer, AC/DC voltage measurements, etc.
The Extech EX210 is an 8-function mini digital multimeter designed to quickly identify overheating motors or locate hot spots on electrical panels and HVAC vents without contact. It features a patented built-in IR Thermometer with a laser pointer and offers a 4:1 Distance to Target Ratio.
The device includes a large backlit dual LCD display capable of 2000 counts and supports low current measurements down to 0.1pA. It is equipped with input fuse protection, auto power off, and data hold functions.
| Functions | 8 Function |
|---|---|
| IR Thermometer Ratio | 4:1 Distance to Target Ratio |
| Display Type | Backlit dual LCD with 2000 count |
| Low Current Capability | Down to 0.1pA |
| AC Voltage Range | 0.1mV to 600V |
| DC Voltage Range | 0.1mV to 600V |
| Basic Accuracy (VDC) | +0.5% |
| AC Current Range | O.1pA to 10A |
| DC Current Range | O.1pA to 10A |
| Resistance Range | 0.19 to 20MQ |
| Temperature Range | -5 to 446°F (-20 to 230°C) |
| Continuity / Diode | Yes |
| Dimensions | 5.8x2.9x1.6" (147x76x42mm) |
The device features a patented 4:1 Distance to Target Ratio.
Yes, the EX210 includes input fuse protection for safety.
It can measure down to 0.1pA.
