This is a mini pocket multimeter with autoranging, relative and data hold functions. It can measure DC voltage, AC voltage, DC current, AC current, resistance, frequency, capacitance and duty cycle. It also has diode test and continuity beep function.

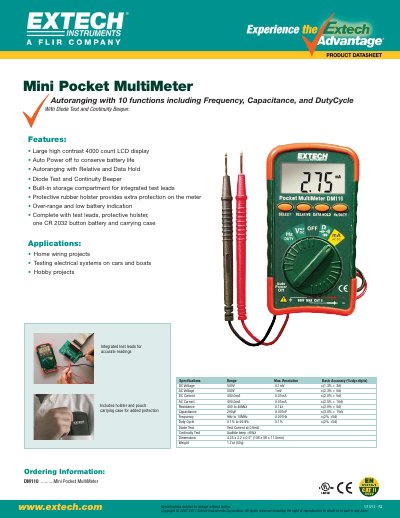

The EXTECH DM110 is a compact multimeter designed for home wiring projects, automotive testing, and hobby applications. It features autoranging across 10 functions including DC/AC Voltage, Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode Test, and Continuity Test.
| Display Count | 4000 count LCD display |
|---|---|
| DC Voltage Range/Resolution/Accuracy | 600V, 0.1mV (2.3% + 8d) |
| DC Current Range/Resolution/Accuracy | 400.0mA, 0.01mA (2.0% + 8d) |
| AC Current Range/Resolution/Accuracy | 400.0mA, 0.01mA (2.5% + 10d) |
| Resistance Range/Resolution/Accuracy | 400 to 40M, 0.1Ω (2.0% + 8d) |
| Capacitance Range/Resolution/Accuracy | 200uF, 0.001nF (3.0% + 15d) |
| Frequency Range/Resolution/Accuracy | Hz to 10MHz, 0.001Hz (2% +5d) |
| Duty Cycle Range/Resolution/Accuracy | 0.1% to 99.9%, 0.1% (2% +5d) |
| Test Current | 0.6mA |
| Continuity Beep Threshold | <600Ω |
| Dimensions | 108 x 56 x 11.5mm |
| Weight | 1.70 oz |
The dimensions are 4.25 x 2.2 x 0.5 inches.
The package includes one CR 2032 button battery.
