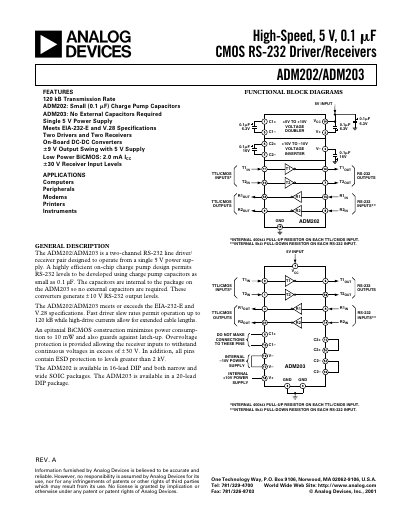

Analog Devices ADM202/ADM203 RS-232 Line Driver/Receiver Datasheet Rev A
The ADM202/ADM203 is a two‑channel RS‑232 line driver/receiver designed for operation from a single 5 V supply. It uses an on‑chip charge‑pump to generate ±10 V RS‑232 levels, supports up to 120 kB data rates, and includes over‑voltage and ESD protection. The ADM202 version requires external charge‑pump capacitors, while the ADM203 integrates them internally.
The datasheet provides detailed specifications such as output voltage swing (±5 V to ±9 V typical), input logic thresholds (0.8 V low, 2.4 V high), power‑supply current (2.5‑6.0 mA), and pin functions. Mechanical drawings for DIP and SOIC packages are also included.
Analog Devices ADM203 specifications
| Output Voltage Swing | ±5 V to ±9 V (typ) |
|---|---|
| Input Logic Threshold Low | 0.8 V |
| Input Logic Threshold High | 2.4 V |
| Baud Rate | 120 kB |
| Power Supply Current | 2.5‑6.0 mA |
| Supply Voltage | 5 V ±10 % |
| External Capacitors Required (ADM202) | Yes |
| External Capacitors Required (ADM203) | No |
Source: Analog Devices ADM202/ADM203 RS-232 Line Driver/Receiver Datasheet Rev A
All Analog Devices ADM203 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate supported by the ADM202/ADM203?
The device supports a maximum data rate of 120 kB.
From: Analog Devices ADM202/ADM203 RS-232 Line Driver/Receiver Datasheet Rev A
What supply voltage does the ADM202/ADM203 require?
It operates from a single 5 V supply (±10 %).
From: Analog Devices ADM202/ADM203 RS-232 Line Driver/Receiver Datasheet Rev A
What is the maximum data transmission rate of the ADM202/ADM203?
The devices support up to 120 kB transmission rate.
From: Analog Devices ADM202/ADM203 RS-232 Driver/Receiver Datasheet
What supply voltage is required for the ADM202/ADM203?
Both parts operate from a single +5 V power supply.
From: Analog Devices ADM202/ADM203 RS-232 Driver/Receiver Datasheet
What supply voltage is required for the ADM202/ADM203?
Both devices operate from a single +5 V power supply.
Do the ADM202 and ADM203 need external capacitors?
The ADM202 requires small external 0.1 µF charge‑pump capacitors, while the ADM203 has the capacitors built in and needs none.
