Start here

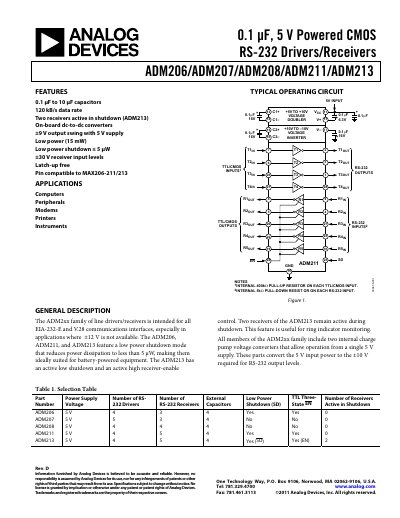

Analog Devices ADM206/ADM207/ADM208/ADM211/ADM213 Product Data Sheet
The ADM2xx family of CMOS RS‑232 drivers and receivers is designed for EIA‑232‑E interfaces using a single 5 V supply. They integrate charge‑pump voltage converters to generate the required ±10 V RS‑232 levels and include low‑power shutdown modes for battery‑powered applications.
Key features include low‑power shutdown (≤5 µW), on‑board DC‑DC converters, selectable pin‑compatible packages, and active‑low/high enable and shutdown pins. The devices are suited for computers, peripherals, modems, printers and instrumentation.
Analog Devices ADM206 specifications
| Output Voltage Swing | ±9 V |
|---|---|
| Power Supply Current | 13 mA |
| Shutdown Supply Current | 10 µA |
| Input Logic Threshold Low | 0.8 V |
| Input Logic Threshold High | 2.0 V |
| RS‑232 Input Voltage Range | –30 V to +30 V |
| RS‑232 Input Threshold Low | 0.8 V |
| RS‑232 Input Threshold High | 2.4 V |
Source: Analog Devices ADM206/ADM207/ADM208/ADM211/ADM213 Product Data Sheet
All Analog Devices ADM206 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical output voltage swing of the ADM2xx devices?
The output voltage swing is ±9 V when powered from a 5 V supply.
From: Analog Devices ADM206/ADM207/ADM208/ADM211/ADM213 Product Data Sheet
How low is the shutdown supply current for the ADM206/ADM211/ADM213?
The shutdown supply current is 10 µA.
From: Analog Devices ADM206/ADM207/ADM208/ADM211/ADM213 Product Data Sheet
What is the low‑power shutdown current?
The shutdown current is less than 5 pW.
How many receivers stay active during shutdown for the ADM213?
Two receivers remain active in shutdown.
