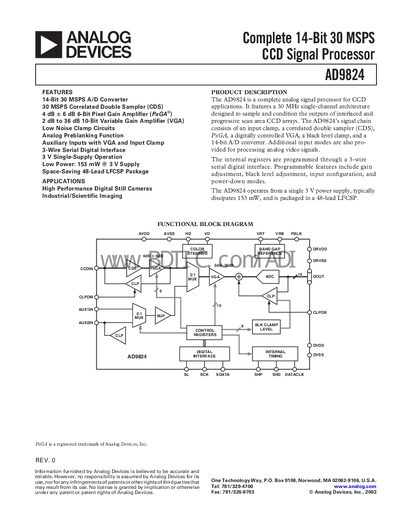

The AD9824 is a complete analog signal processor for CCD applications. It features a 30 MHz single-channel architecture and can achieve 14-bit ADC conversion at 30 MSPS.
The AD9824 is a complete analog signal processor for CCD applications, featuring a 14‑bit A/D converter, variable gain amplifiers, and a 3‑wire serial digital interface. It operates from a single 3 V supply and is packaged in a 48‑lead LFCSP, making it suitable for high‑performance digital still cameras and industrial imaging systems.
The device offers a maximum clock rate of 30 MHz, power consumption as low as 153 mW in normal mode, and supports a wide temperature range from –20 °C to +85 °C. Detailed specifications include input ranges, gain steps, timing parameters, and absolute maximum ratings for reliable integration into imaging designs.
| Resolution | 14 Bits |
|---|---|
| Maximum Clock Rate | 30 MHz |
| Power Consumption (Normal Operation) | 153 mW |
| Operating Temperature Range | -20 °C to +85 °C |
| Full‑Scale Input Voltage | 2.0 V |
The device operates from –20 °C to +85 °C.
Normal operation power consumption is 153 mW.
The maximum clock rate is 30 MHz.
