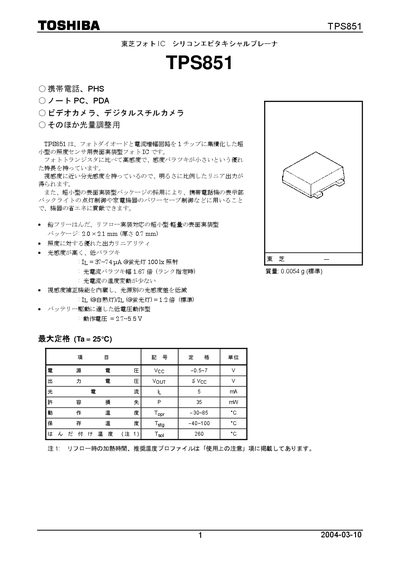

Toshiba TPS851 Photodiode Sensor Datasheet
The TPS851 is a compact surface‑mount photodiode with integrated current‑amplifier, offering high sensitivity and low variation. It is intended for use in mobile phones, notebooks, digital cameras and other illumination‑control applications.
The document provides electrical and optical characteristics, pin configuration, mechanical dimensions, recommended soldering procedures, packaging details and handling precautions. This manual is written in Japanese.
Toshiba TPS851 specifications
| Operating voltage | 2.7 V – 5.5 V |
|---|---|
| Supply current | 5 mA |
| Power dissipation | 35 mW |
| Package size | 2.0 mm × 2.1 mm × 0.7 mm |
| Mass (standard) | 0.0054 g |
| Spectral response range | up to 600 nm |
All Toshiba TPS851 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum reflow soldering temperature for the TPS851 package?
The package surface temperature must not exceed 260 °C, with a recommended profile up to 230 °C.
What is the recommended storage condition before soldering?
Store at 5 °C–30 °C with humidity ≤60 % for no more than 168 hours after opening.
What are the dimensions of the TPS851 package?
The surface‑mount package measures 2.0 mm × 2.1 mm with a thickness of 0.7 mm.
