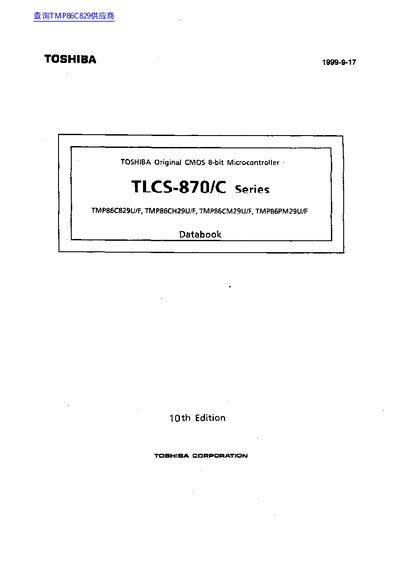

Toshiba TLCS-870/C Series Databook
This databook describes the TLCS-870/C family of 8‑bit CMOS microcontrollers, including the TMP86C829U/F, TMP86CH29U/F, TMP86CM29U/F and TMP86PM29U/F devices. It lists key features such as high‑speed operation, low power consumption, on‑chip LCD driver, UART/SIO, 10‑bit A/D converter, multiple timers, and various power‑saving modes.
The document includes detailed pin‑assignment tables, block diagrams, and electrical specifications such as operating voltage ranges, instruction execution times, ROM/RAM sizes, package types, and interrupt sources. It also provides notes on reliability, handling precautions, and usage guidelines for designers.
Toshiba TLCS-870 specifications
| ROM size | 8K x 8-bit |
|---|---|
| Package | P‑LQFP64‑1010‑0.50 |
| Instruction execution time (16 MHz) | 0.25 µs |
| Interrupt sources | 18 |
| I/O ports | 39 pins |
| ADC type | 10‑bit successive approximation |
| Operating voltage range | 1.8 V to 5.5 V (various frequencies) |
