Texas Instruments TPC10 Series CMOS FPGA Datasheet
Datasheet 69 pages · 3.2 MB · EN

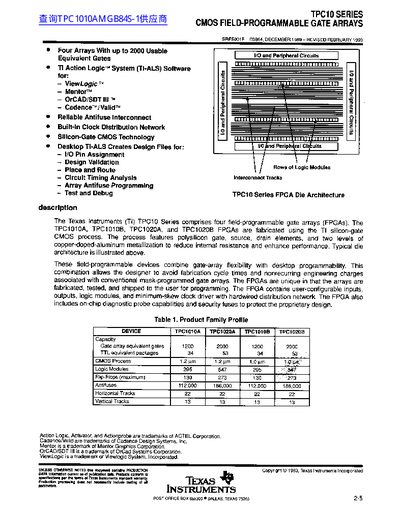

The Texas Instruments TPC10 Series comprises four field-programmable gate arrays: TPC1010A, TPC1010B, TPC1020A, and TPC1020B. These devices are fabricated using TI silicon-gate CMOS technology, which includes polysilicon gates and copper-doped-aluminum metallization to reduce internal resistance. The series combines gate-array flexibility with desktop programmability, allowing designers to avoid fabrication cycle times associated with conventional mask-programmed arrays.
Read onlineTexas Instruments TPC10 specifications
| Technology Process | silicon-gate CMOS process |
|---|---|
| Gate Capacity (TPC1010A/B) | 1200 equivalent gates |
| Logic Modules (TPC1010A/B) | 295 modules |
| Flip-Flops (Maximum, TPC1010A/B) | 130 flip-flops |
| Antifuses (TPC1010A) | 412,000 antifuses |
All Texas Instruments TPC10 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What software supports the TPC10 Series FPGAs?
The devices are supported by the Action Logic System (ALS) software and Activator programming hardware.
Can I view internal signals using diagnostic pins?
Yes, two independent diagnostic probe pins (PRA and PRB) allow users to observe any internal signals.
