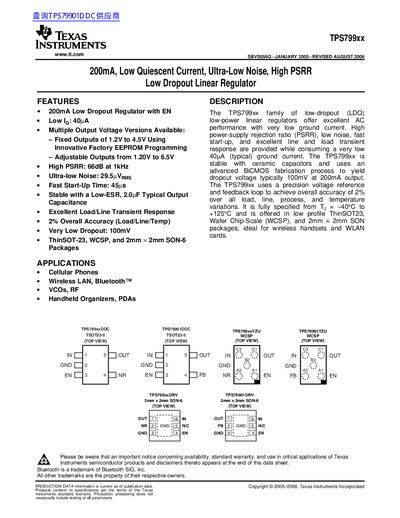

Texas Instruments TPS799xx Low Dropout Linear Regulator Datasheet
The TPS799xx family consists of low-dropout (LDO) low-power linear regulators that offer excellent AC performance with very low ground current. These devices are stable with ceramic capacitors and utilize an advanced BiCMOS fabrication process to achieve a typical dropout voltage of 100mV at 200mA output.
The product is available in fixed output versions ranging from 1.2V to 4.5V via factory EEPROM programming, as well as adjustable outputs from 1.20V to 6.5V. It is offered in ThinSOT-23, WCSP, and SON-6 packages, making it ideal for wireless handsets and WLAN cards.
Texas Instruments TPS799XX specifications
| Output Current | 200mA |
|---|---|
| Ground Current (Typical) | 40µA |
| Power-Supply Rejection Ratio @ 1kHz | 66dB |
| Output Noise Voltage (Typical) | 29.5µVrms |
| Startup Time (Typical) | 45µs |
| Output Accuracy | 2% |
| Dropout Voltage @ 200mA | 100mV |
| Operating Temperature Range | -40°C to +125°C |
Source: Texas Instruments TPS799xx Low Dropout Linear Regulator Datasheet
All Texas Instruments TPS799XX documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available output voltage versions?
Fixed outputs of 1.2V to 4.5V and adjustable outputs from 1.20V to 6.5V.
From: Texas Instruments TPS799xx Low Dropout Linear Regulator Datasheet
What packages are available for the TPS799xx?
The device is offered in ThinSOT-23, WCSP, and 2mm x 2mm SON-6 packages.
From: Texas Instruments TPS799xx Low Dropout Linear Regulator Datasheet
What is the typical dropout voltage at 200 mA?
Typical dropout voltage is about 100 mV when delivering 200 mA.
