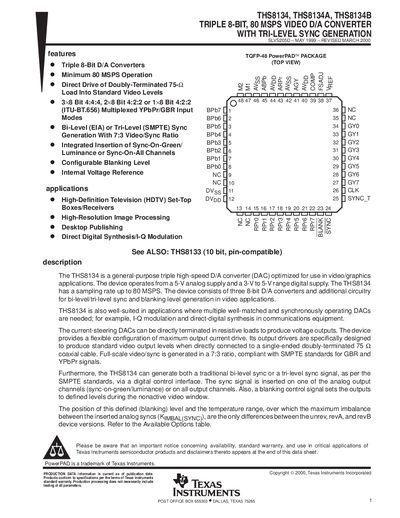

Texas Instruments THS8134 Datasheet
The THS8134 is a general‑purpose triple high‑speed D/A converter optimized for video and graphics applications. It provides three 8‑bit DACs, operates from a 5‑V analog supply and a 3‑5 V digital supply, and supports bi‑level or tri‑level sync generation.
Key features include an internal 1.35 V voltage reference, configurable blanking level, and a TQFP‑48 PowerPAD package. The device can directly drive standard video loads and offers flexible output current settings for HDTV and other high‑definition video systems.
Texas Instruments THS8134 specifications
| Sampling Rate | up to 80 MSPS |
|---|---|
| Analog Supply Voltage | 5 V |
| Digital Supply Voltage | 3‑5 V |
| Package | TQFP‑48 PowerPAD |
| Internal Voltage Reference | 1.35 V (nominal) |
| Operating Temperature Range | up to 70 °C |
| Number of DAC Channels | 3 (8‑bit each) |
All Texas Instruments THS8134 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the THS8134?
The THS8134 can sample at up to 80 MSPS.
What supply voltages does the THS8134 require?
It operates from a 5‑V analog supply and a 3‑5 V digital supply.
What is the maximum sampling rate of the THS8134 series?
The device can sample at up to 80 MSPS.
From: Texas Instruments THS8134/THS8134A/THS8134B Triple 8‑Bit 80 MSPS Video D/A Converter Datasheet
What supply voltages are required for the THS8134?
It needs a 5 V analog supply and a digital supply that can be between 3 V and 5 V.
From: Texas Instruments THS8134/THS8134A/THS8134B Triple 8‑Bit 80 MSPS Video D/A Converter Datasheet
