Start here

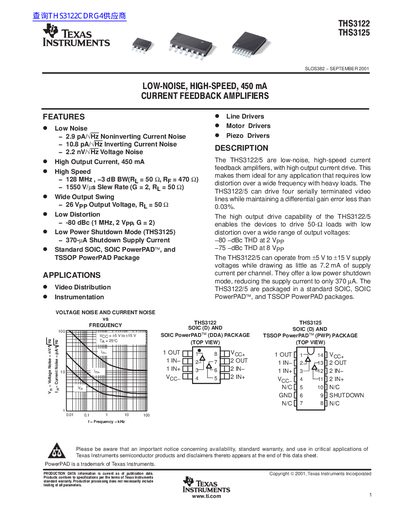

Texas Instruments THS3122/THS3125 Low-Noise High-Speed Current Feedback Amplifiers Datasheet
The THS3122 and THS3125 are low-noise, high-speed current feedback amplifiers designed for applications requiring low distortion over a wide frequency range with heavy loads. These devices are ideal for driving four serially terminated video lines while maintaining a differential gain error less than 0.03%.
Read onlineTexas Instruments THS3125 specifications
| Noninverting Current Noise | 2.9 pA/VHz |
|---|---|
| Inverting Current Noise | 10.8 pA/VHz |
| Voltage Noise | 2.2 nV/VHz |
| High Output Current | 450 mA |
| Total Harmonic Distortion | -80 dBc |
| Shutdown Supply Current | 370 µA |
| Supply Voltage Range | +5 V to +15 V |
Source: Texas Instruments THS3122/THS3125 Low-Noise High-Speed Current Feedback Amplifiers Datasheet
All Texas Instruments THS3125 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current drive?
The devices feature a high output current drive of 450 mA.
From: Texas Instruments THS3122/THS3125 Low-Noise High-Speed Current Feedback Amplifiers Datasheet
Does the THS3125 have a low power shutdown mode?
Yes, the THS3125 offers a low power shutdown mode reducing supply current to 370 µA.
From: Texas Instruments THS3122/THS3125 Low-Noise High-Speed Current Feedback Amplifiers Datasheet
What is the maximum output current drive for these amplifiers?
The devices can provide an output current drive of up to 440 mA under specific test conditions.
