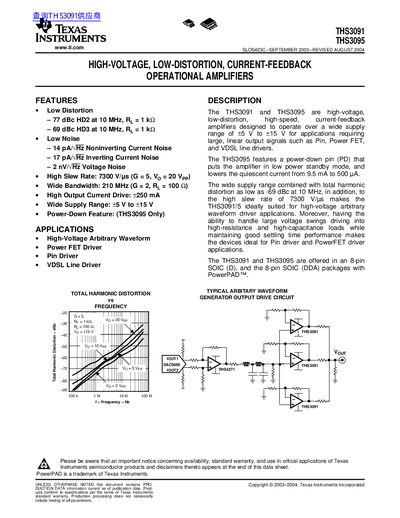

Texas Instruments THS3091/THS3095 High-Voltage Operational Amplifiers Datasheet
The THS3091 and THS3095 are high-speed, current-feedback operational amplifiers designed for wide supply ranges of ±5 V to ±15 V. They are optimized for applications requiring large, linear output signals, such as arbitrary waveform generators, Pin drivers, and VDSL line drivers. The devices offer low distortion, high slew rates, and high output current drive capabilities.
Read onlineTexas Instruments THS3095 specifications
| Total Harmonic Distortion | -69 dBc at 10 MHz |
|---|---|
| Slew Rate | 7300 V/µs |
| Small-Signal Bandwidth | 210 MHz |
| Output Current Drive | ±250 mA |
| Input Voltage Noise | 2 nV/√Hz |
| Operating Temperature | -40°C to 85°C |
| Maximum Junction Temperature | 150°C |
Source: Texas Instruments THS3091/THS3095 High-Voltage Operational Amplifiers Datasheet
All Texas Instruments THS3095 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the THS3095 have a power-down feature?
Yes, the THS3095 features a power-down pin (PD) that puts the amplifier in low power standby mode.
From: Texas Instruments THS3091/THS3095 High-Voltage Operational Amplifiers Datasheet
What is the maximum quiescent current for the THS3095 in power-down mode?
The quiescent current is lowered from 9.5 mA to 500 µA in power-down mode.
From: Texas Instruments THS3091/THS3095 High-Voltage Operational Amplifiers Datasheet
What is the slew rate of these amplifiers?
The devices have a slew rate of 7300 V/µs (G = 5, Vo = 20 Vpp).
From: Texas Instruments THS3091/THS3095 High‑Voltage Low‑Distortion Operational Amplifier Datasheet
Does the THS3095 have a power‑down pin?
Yes, the THS3095 includes a power‑down pin that lowers quiescent current to about 500 µA.
From: Texas Instruments THS3091/THS3095 High‑Voltage Low‑Distortion Operational Amplifier Datasheet
