Key facts
- Brand
- Texas Instruments
- Model
- THS0842
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-11
Start here

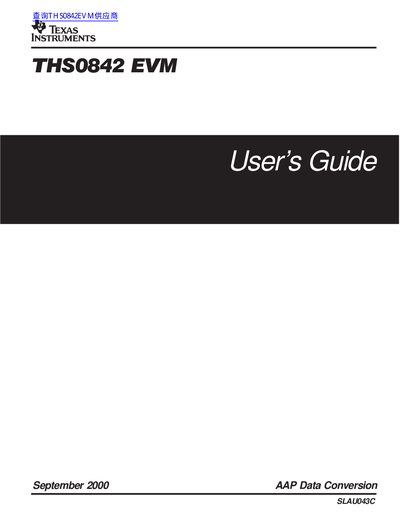

Texas Instruments THS0842 Evaluation Module User's Guide
The document presents a description of the THS0842 analog-to-digital converter (ADC) evaluation module. It serves as a platform for evaluating the device under various signal, reference, and supply conditions.
The manual covers circuit functionality including single-ended transformer coupled interfaces, differential interfaces, digital inputs, and analog outputs. It also details power requirements, layout considerations, decoupling, grounding, and provides information on the printed-circuit board and bill of materials.
Texas Instruments THS0842 specifications
| Resolution | 8-bit |
|---|---|
| Sampling Rate | 40 MSPS |
| Analog Input Bandwidth | 600 MHz Typ |
| Supply Voltage | 3.3 V |
Source: Texas Instruments THS0842 Dual-Input 8-Bit 40 MSPS ADC Datasheet
All Texas Instruments THS0842 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the purpose of this evaluation module?
The THS0842 EVM provides a platform for evaluating the THS0842 analog-to-digital converter under various signal, reference, and supply conditions.
From: Texas Instruments THS0842 Evaluation Module User's Guide
What is the required clock frequency?
The system requires an 80 MHz oscillator to function as indicated in the block diagram.
From: Texas Instruments THS0842 Evaluation Module User's Guide
What is the maximum sampling rate of the THS0842?
The device can sample up to a maximum rate of 40 MSPS with an 80 MHz clock.
From: Texas Instruments THS0842 Dual-Input 8-Bit 40 MSPS ADC Datasheet
Does the THS0842 support internal or external references?
Yes, both bottom and top voltage references can be set from user-supplied voltages, or on-chip references can be used.
From: Texas Instruments THS0842 Dual-Input 8-Bit 40 MSPS ADC Datasheet
