SN5406, SN5416, SN7406, and SN7416 are hex inverter buffers/drivers with open-collector high-voltage outputs for interfacing with high-level circuits (such as MOS) or for driving high-current loads (such as lamps or relays). They are also characterized for use as inverter buffers for driving TTL inputs.

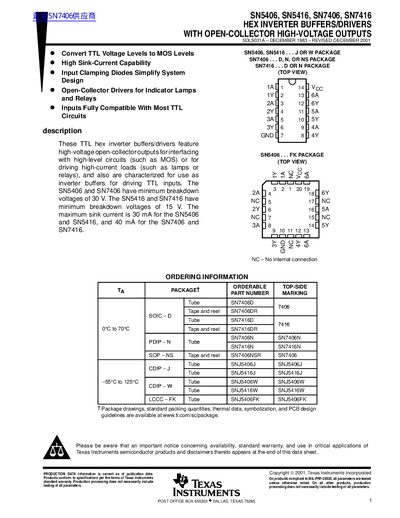

This document is a datasheet for the SN5406, SN5416, SN7406, and SN7416 hex inverter buffers/drivers featuring open-collector high-voltage outputs. These devices are designed for interfacing with high-level circuits, such as MOS, or for driving high-current loads like indicator lamps and relays. They also function as inverter buffers for driving TTL inputs.
| Minimum Breakdown Voltage (SN5406/SN7406) | 30 V |
|---|---|
| Minimum Breakdown Voltage (SN5416/SN7416) | 15 V |
| Maximum Sink Current (SN5406/SN5416) | 30 mA |
| Maximum Sink Current (SN7406/SN7416) | 40 mA |
| Supply Voltage (VCC) | 4.5 V to 5.5 V |
| Operating Temperature Range (SN5406/SN5416) | -55°C to 125°C |
The maximum sink current is 40 mA for the SN7406 and SN7416.
The SN5406 and SN7406 have minimum breakdown voltages of 30 V.
Yes, the inputs are fully compatible with most TTL circuits.
