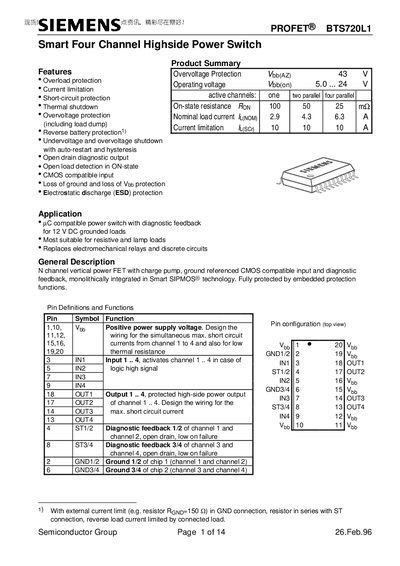

Siemens BTS720L1 Smart Four‑Channel Highside Power Switch Datasheet
The Siemens BTS720L1 is a smart four‑channel high‑side power switch built in N‑channel vertical power FET technology with an integrated charge pump. It offers CMOS‑compatible inputs, diagnostic feedback, and a range of protection functions such as over‑voltage, overload, short‑circuit, thermal shutdown, reverse‑battery, and ESD protection.
The datasheet provides detailed pin definitions, block diagrams, maximum ratings, electrical characteristics, protection functions, diagnostic features, and package dimensions. It also includes truth tables for normal operation and fault conditions, as well as ordering codes for the standard P‑DSO‑20‑9 package.
Siemens BTS720L1 specifications
| Operating voltage | 5.0 – 24 V |
|---|---|
| Input voltage (DC) | -10 – +16 V |
| ESD protection capability | 1.0 kV (Human Body Model) |
| Storage temperature range | -65 °C – 150 °C |
| Number of channels | 4 |
Source: Siemens BTS720L1 Smart Four‑Channel Highside Power Switch Datasheet
All Siemens BTS720L1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the BTS720L1?
The device operates from 5.0 V up to 24 V.
From: Siemens BTS720L1 Smart Four‑Channel Highside Power Switch Datasheet
How many high‑side channels does the BTS720L1 provide?
It provides four independent high‑side power channels.
From: Siemens BTS720L1 Smart Four‑Channel Highside Power Switch Datasheet
What is the nominal load current for one active channel?
The nominal load current for one active channel is between 2.9 A and 6.3 A.
From: Siemens BTS720L1 Smart Four-Channel Highside Power Switch Datasheet
What is the input voltage range for the BTS720L1?
The allowed input voltage range is from –10 V to +16 V.
From: Siemens BTS720L1 Smart Four-Channel Highside Power Switch Datasheet
