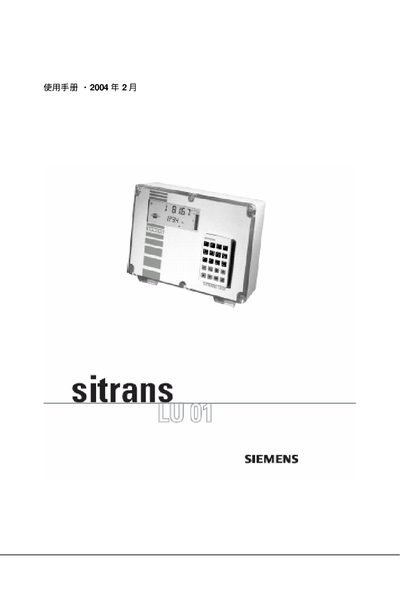

Siemens SITRANS LU 01 User Manual
The SITRANS LU 01 is an ultrasonic level monitoring system from Siemens that measures liquid or solid levels without contacting the material. It uses a Siemens‑Milltronics ultrasonic probe and optional temperature sensor to calculate distance based on echo time.
The instruction manual covers product specifications, installation requirements, electrical characteristics, probe mounting, wiring diagrams, programming via the handheld controller, Dolphin Plus software or SmartLinx, supported communication protocols, and detailed fault‑diagnosis procedures such as the LOE error display. This manual is written in Chinese.
Siemens LU 01 specifications
| Power (AC model) | 100/115/200/230 V AC ±15%, 50/60 Hz, 31 VA |
|---|---|
| Measurement range | 0.3 m (1 ft) to 60 m (200 ft) max. |
| Accuracy | 0.25 % of range or 6 mm (0.24 in), whichever is greater |
| Relay outputs | 4 alarm/control relays, 1 form C SPDT, 5 A @ 250 V AC |
| Enclosure rating | Type 4X / NEMA 4X / IP65 |
| Weight | 2.7 kg (6 lb) |
| Temperature compensation range | –50 °C to 150 °C (–58 °F to 302 °F) |
Source: Siemens SITRANS LU 01 Ultrasonic Level Monitor User Manual
All Siemens LU 01 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum measurement range of the SITRANS LU 01?
The device can measure from 0.3 m (1 ft) up to 60 m (200 ft).
From: Siemens SITRANS LU 01 Ultrasonic Level Monitor User Manual
How many alarm relays does the SITRANS LU 01 provide?
It provides four alarm/control relays, each with a form C SPDT contact rated at 5 A @ 250 V AC.
From: Siemens SITRANS LU 01 Ultrasonic Level Monitor User Manual
What is the measurement range of the SITRANS LU 01?
It can measure from 0.3 m (1 ft) up to 60 m (200 ft).
Which communication protocols are supported?
The device supports PROFIBUS DP, Allen‑Bradley Remote I/O, Modbus RTU and DeviceNet.
