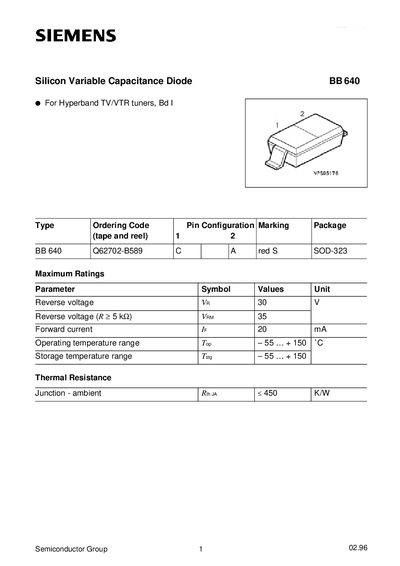

Siemens BB 640 Silicon Variable Capacitance Diode Datasheet
Datasheet 2 pages · 44 KB · EN
This datasheet describes the Siemens BB 640 silicon variable capacitance diode, including its ordering code, pin configuration, and package type (SOD‑323, tape and reel). It provides the maximum ratings such as reverse voltage, forward current, and temperature limits.
The electrical characteristics section gives typical and maximum values for reverse current, diode capacitance at various bias voltages and frequencies, series resistance, inductance, and capacitance matching. All values are specified at 25 °C unless otherwise noted.
Siemens BB 640 specifications
| Maximum reverse voltage (Vr) | 30 V |
|---|---|
| Maximum forward current (Ir) | 20 mA |
| Operating temperature range | -55 °C … +150 °C |
| Junction‑ambient thermal resistance (Rja) | < 450 K/W |
| Series resistance (rs) | 1.15 Ω |
| Series inductance (Ls) | 2 nH |
| Capacitance ratio (cn) | 19.5 – 25 |
| Capacitance matching tolerance | ±2.5 % |
