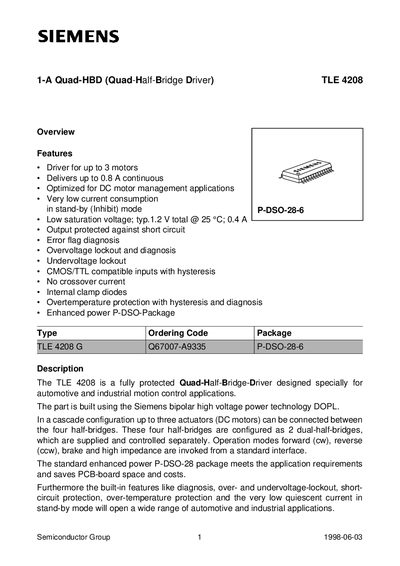

SIEMENS 1-A Quad-HBD (Quad-Half-Bridge Driver) TLE 4208 Manual(1)
The TLE 4208 is a fully protected Quad‑Half‑Bridge driver designed for automotive and industrial motion‑control applications. It can drive up to three DC motors in cascade configuration and offers forward, reverse, brake and high‑impedance modes via a standard interface.
Key specifications include up to 0.8 A continuous output current, low saturation voltage (typ. 1.2 V at 25 °C), very low standby current, and built‑in protection such as short‑circuit, over‑/under‑voltage lockout, over‑temperature shutdown and error‑flag diagnosis.
Siemens TLE4208 specifications
| Continuous output current | 0.8 A |
|---|---|
| Typical saturation voltage | 1.2 V @ 25 °C |
| Quiescent current (stand‑by, INH low) | 100 µA |
| Supply voltage range | 4.5 V – 45 V |
Source: SIEMENS 1-A Quad-HBD (Quad-Half-Bridge Driver) TLE 4208 Manual(1)
All Siemens TLE4208 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous output current of the TLE 4208?
The device can deliver up to 0.8 A continuous output current.
From: SIEMENS 1-A Quad-HBD (Quad-Half-Bridge Driver) TLE 4208 Manual(1)
What is the maximum continuous output current?
The driver can deliver up to 0.8 A continuous current.
From: SIEMENS 1-A Quad-HBD (Quad-Half-Bridge Driver) TLE 4208 Manual(1)(1)
How many half‑bridges are in the driver and how are they configured?
The device contains four half‑bridges, arranged as two dual‑half‑bridges that can be driven separately.
From: SIEMENS 1-A Quad-HBD (Quad-Half-Bridge Driver) TLE 4208 Manual(1)(1)
