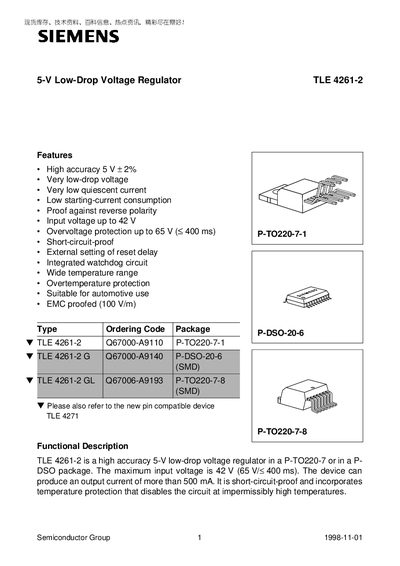

Siemens TLE 4261-2 5‑V Low‑Drop Voltage Regulator Datasheet
The TLE 4261-2 regulates an input voltage up to 42 V (65 V for <400 ms) to a precise 5 V output with 2 % accuracy. It features low quiescent current, reverse‑polarity protection, over‑temperature shutdown, and an integrated watchdog that monitors a connected microprocessor.
Key electrical specifications include a maximum output current of >500 mA, drop voltage of 0.35‑0.5 V, load regulation of 15‑35 mV, ripple rejection of 54 dB at 100 Hz, and an operating temperature range of –40 °C to 150 °C. The device is offered in P‑TO220‑7 and P‑DSO‑20‑6 packages with detailed pin definitions for input, inhibit, reset, watchdog and output functions.
Siemens TLE 4261 specifications
| Output voltage | 5 V |
|---|---|
| Maximum output current | >500 mA |
| Input voltage range | 0 V–42 V (continuous), up to 65 V <400 ms |
| Overvoltage protection | Up to 65 V for <400 ms |
| Drop voltage | 0.35 V–0.5 V |
| Load regulation | 15 mV–35 mV (25 mA‑500 mA) |
| Ripple rejection | 54 dB at 100 Hz |
| Operating temperature range | -40 °C to 150 °C |
| Quiescent current | Low starting‑current consumption |
Source: Siemens TLE 4261-2 5‑V Low‑Drop Voltage Regulator Datasheet
All Siemens TLE 4261 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input voltage for the TLE 4261‑2?
The device can handle up to 42 V continuously and up to 65 V for less than 400 ms.
From: Siemens TLE 4261-2 5‑V Low‑Drop Voltage Regulator Datasheet
How much output current can the regulator provide?
It can supply more than 500 mA of output current.
From: Siemens TLE 4261-2 5‑V Low‑Drop Voltage Regulator Datasheet
What is the maximum input voltage for the TLE 4261?
The device can tolerate up to 42 V continuously and up to 65 V for pulses shorter than 400 ms.
From: Siemens TLE 4261 5‑V Low‑Drop Voltage Regulator Datasheet
