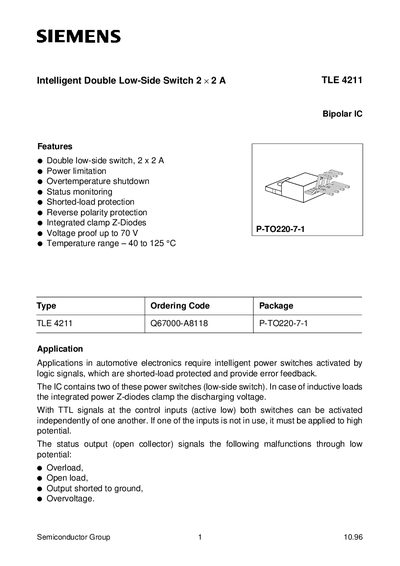

Siemens TLE 4211 Intelligent Double Low‑Side Switch Datasheet
The TLE 4211 is an intelligent double low‑side switch IC designed for automotive electronics. It provides two 2 A low‑side switches with integrated Z‑diodes for clamp protection, overtemperature shutdown, reverse polarity protection, and status monitoring for overload, open‑load, shorted‑load, and overvoltage conditions.
The document includes pin definitions, a block diagram, circuit description, absolute maximum ratings, and characteristic curves. It specifies supply voltage limits, temperature ranges, and typical performance parameters for designers integrating the device into their circuits.
Siemens TLE 4211 specifications
| Voltage proof | up to 70 V |
|---|---|
| Temperature range | -40 °C to 125 °C |
| Output current (pin 1) | 10 mA |
| Case temperature (T₀) | -40 °C to 125 °C |
| Quiescent current (Iₛ) | 3.5 µA to 10 mA |
Source: Siemens TLE 4211 Intelligent Double Low‑Side Switch Datasheet
All Siemens TLE 4211 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What temperature range can the device operate in?
It operates from –40 °C up to 125 °C.
From: Siemens TLE 4211 Intelligent Double Low‑Side Switch Datasheet
How many output channels does the IC have and what is their current rating?
The IC has two low‑side switch channels, each rated for 2 A.
From: Siemens TLE 4211 Intelligent Double Low‑Side Switch Datasheet
