Start here

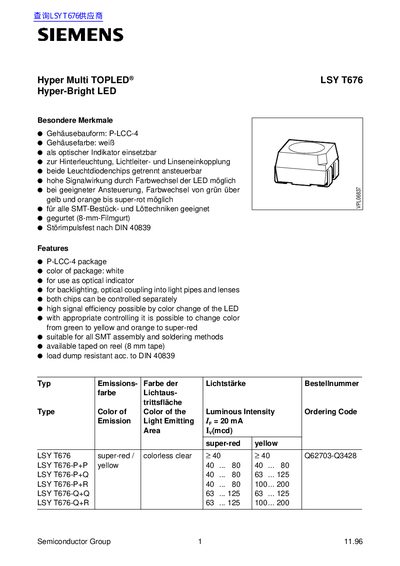

Siemens LSY T676 LED Datasheet
This document is a technical datasheet for the Siemens LSY T676, a dual-chip High Brightness LED available in a white P-LCC-4 package. It is designed for use as an optical indicator or for backlighting applications involving light pipes and lenses.
The device features two separate chips that can be controlled independently to change color from green through yellow and orange to super-red. The datasheet provides detailed maximum ratings, electrical characteristics, spectral emission data, and mechanical package dimensions.
Siemens T676 specifications
| Package Type | P-LCC-4 |
|---|---|
| Operating Temperature Range | -55...+100 °C |
| Forward Current (Max) | 20 mA |
| Reverse Voltage | 3 V |
| Peak Emission Wavelength (Super-red) | 645 nm |
| Viewing Angle | 120 deg. |
Source: Siemens LSY T676 LED Datasheet
All Siemens T676 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What colors can the LSY T676 LED display?
The LED allows for color changes from green to yellow and orange to super-red.
Is the LSY T676 suitable for SMT assembly?
Yes, it is suitable for all SMT assembly and soldering methods.
Is the T676 LED suitable for SMT assembly?
Yes, it is suitable for all SMT assembly and soldering methods.
What is the operating temperature range for these LEDs?
The devices operate within a temperature range of -55 to +100 C.
