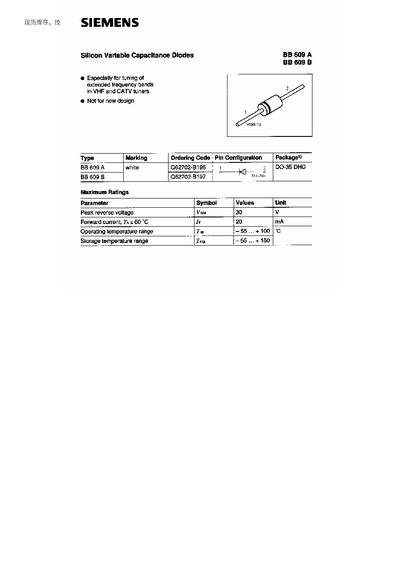

Siemens BB609A/BB609B Variable Capacitance Diode Datasheet
The Siemens BB609A and BB609B are silicon variable capacitance diodes intended for tuning extended frequency bands in VHF and CATV tuners. They are not recommended for new designs but serve as spare parts for existing equipment.
The document provides maximum ratings, electrical characteristics, and package information, including reverse voltage, forward current, temperature ranges, capacitance values, series resistance, and inductance.
Siemens BB609B specifications
| Peak reverse voltage | 30 V |
|---|---|
| Forward current (Ir) | 20 mA |
| Operating temperature range | -55 °C to +100 °C |
| Storage temperature range | -56 °C to +150 °C |
| Reverse current (typical) at 30 V | 20 nA |
| Diode capacitance at 1 MHz (BB609A) | 32.5 pF |
| Series resistance | ~0.7 Ω |
| Series inductance | 3 nH |
| Capacitance matching tolerance | 2.5 % |
Source: Siemens BB609A/BB609B Variable Capacitance Diode Datasheet
