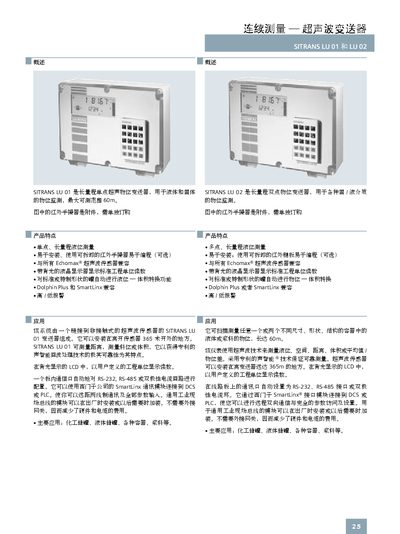

Siemens SITRANS LU 01 and LU 02 Ultrasonic Transmitter Manual
The SITRANS LU 01 is a single‑point long‑range ultrasonic level transmitter for liquids and solids, while the SITRANS LU 02 provides dual‑point measurement. Both devices use patented sound‑intelligent echo processing and can be installed up to 365 m from the sensor. They feature a back‑lit LCD that displays user‑defined engineering units and support RS‑232, RS‑485 or 4‑20 mA current loop communication.
The manual includes product features, technical specifications, ordering information, wiring diagrams and communication options such as SmartLinx and Dolphin Plus. It also lists environmental ratings, power requirements and optional accessories like detachable infrared keypads. This manual is written in Chinese.
Siemens LU02 specifications
| Measurement range | 0.3 – 60 m |
|---|---|
| Measurement points | LU 01: 1 point, LU 02: 2 points |
| Output signal | 4‑20 mA (isolated) |
| Resolution | 0.1 % of range |
| Accuracy | 0.25 % of range or 6 mm (whichever larger) |
| Temperature compensation range | -50 °C to +150 °C |
| Enclosure protection rating | IP65 (wall‑mounted) |
| Weight | 2.7 kg |
| Power supply (AC) | 100/115/200/230 V AC ±15 % 50/60 Hz |
| Power supply (DC) | 18–30 V DC, 25 W |
Source: Siemens SITRANS LU 01 and LU 02 Ultrasonic Transmitter Manual
