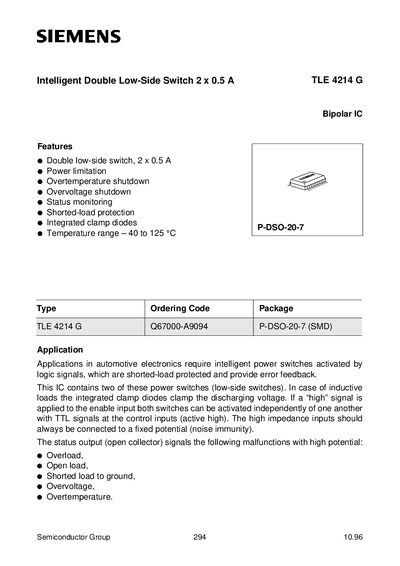

Siemens TLE4214G Bipolar IC Datasheet
The TLE4214G is a bipolar double low‑side switch IC designed for automotive electronics and other applications requiring intelligent power switching. Each of the two channels can handle up to 0.5 A, provides shorted‑load protection, integrated clamp diodes, and status monitoring for overload, overvoltage, overtemperature and open‑load conditions.
The device is supplied in a P‑DSO‑20‑7 package and operates over a temperature range of –40 °C to 125 °C. Absolute maximum ratings include a supply voltage of up to 70 V (short‑term) and 40 V continuous, with a status‑output current limit of 10 mA. Detailed pin configurations, circuit descriptions, and protective functions are provided in the document.
Siemens TLE4214G specifications
| Channel current rating | 0.5 A per channel |
|---|---|
| Operating temperature range | ‑40 °C to 125 °C |
| Maximum supply voltage (short‑term) | 70 V |
| Status output current | 10 mA |
All Siemens TLE4214G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the TLE4214G?
The device can tolerate up to 70 V for short periods (t < 0.2 s) and up to 40 V continuously.
How many channels does the TLE4214G have and what is the current rating per channel?
It contains two low‑side switch channels, each rated for 0.5 A.
